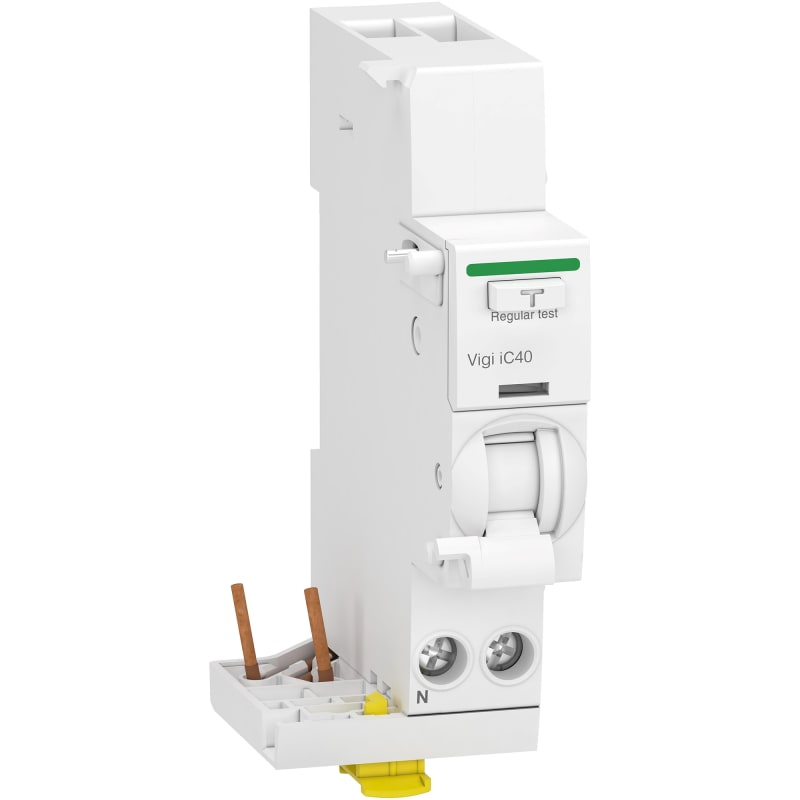

Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 1P+N, 25A, A-SI type, instantaneous, 30MA, 230VAC A9Y84625
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9Y84625 Acti 9 Vigimodul iC40 1PN 25A 30 mA SI.
Technical Specifications
- Manufacturer part number (MPN)
- A9Y84625
- EAN / GTIN
- 3606481327482
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 25 A
- Range
- Acti9
- Product name
- Acti9 Vigi iC40
- Product or component type
- Add-on residual current device
- Device short name
- Vigi iC40
- Range compatibility
- Acti9 iC40
- Poles description
- 1P + N
- Neutral position
- Left
- [In] rated current
- 25 A
- Network type
- AC
- Earth-leakage sensitivity
- 30 mA
- Earth-leakage protection time delay
- Instantaneous
- Earth-leakage protection class
- Type A-SI (Super Immunised)
- Standards
- EN/IEC 61009-2-1
- Product certifications
- CE
- Quality labels
- OVE; IMQ
- Device location in system
- Outgoer
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 230 V AC 50/60 Hz
- Residual current tripping technology
- Voltage independent
- [Ui] rated insulation voltage
- 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to EN/IEC 61009-2-1
- Local signalling
- Fault indication
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Electrical connection to mcb
- By screws
- 9 mm pitches
- 2
- Height
- 95 mm
- Width
- 36 mm
- Depth
- 74 mm
- Product weight
- 90 g
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles
- Connections - terminals
- Tunnel type terminal bottom 1…16 mm² rigid; Tunnel type terminal bottom 1…10 mm² flexible
- Wire stripping length
- 14 mm for bottom connection
- Tightening torque
- 2 N.m bottom
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to EN/IEC 61009-2-1
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 27
- Warranty (in months)
- 18
- Nominal current
- 25 A
- Rated fault current adjustable
- No
- Delay adjustable
- No
- Number of poles
- 2
- Leakage current type
- A
- Surge current capacity
- 3 kA
- Frequency
- 50/60 Hz
- Rated insulation voltage Ui
- 400 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Anti-nuisance tripping version
- Yes
- With interlocking device
- No
- Degree of protection (IP)
- IP20
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3606481327482
- SAP 1200232080
- Code 82180573
