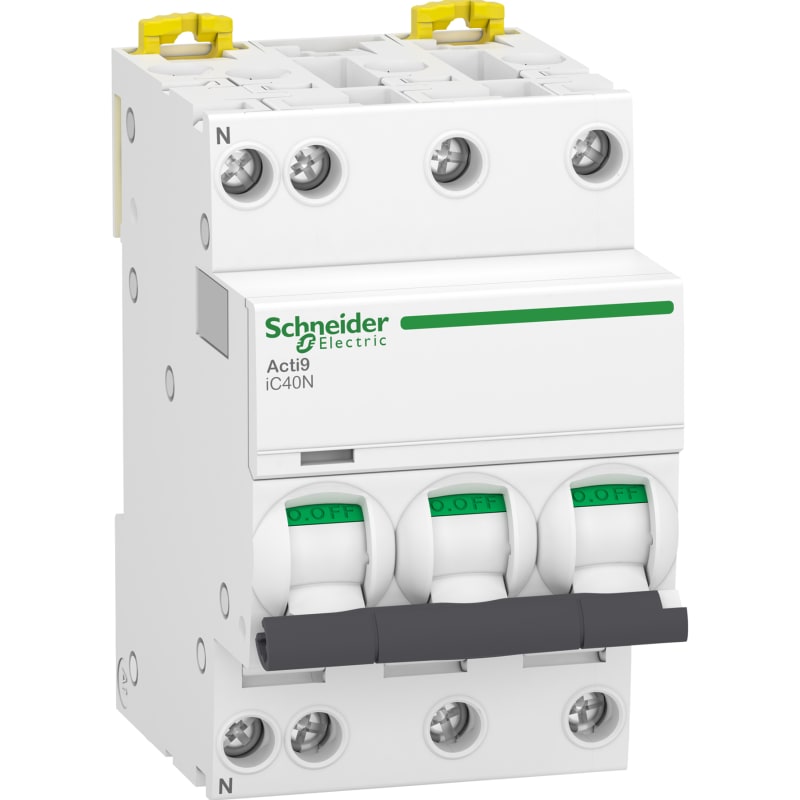

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 20A, B curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P44720

Schneider Electric A9P44720 Acti 9 iC40N miniature circuit breaker 3P B 20A.

Manufacturer part number (MPN)

A9P44720

EAN / GTIN

3606481326072

HS code

8536.90

Sales unit

pcs

Package quantity

4 pcs

Rated current

20 A

Range

Acti9

Product name

Acti9 iC40

Product or component type

Miniature circuit-breaker

Device short name

iC40N

Device application

Distribution

Poles description

3P + N

Number of protected poles

3

Neutral position

Left

[In] rated current

20 A

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

B

Breaking capacity

10 kA Icu at 400 V AC 50/60 Hz conforming to EN/IEC 60947-2; 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Quality labels

OVE; IMQ

Network frequency

50/60 Hz

[Ue] rated operational voltage

400 V AC 50/60 Hz

Magnetic tripping limit

3...5 x In conforming to EN/IEC 60898-1; 4 x In +/- 20 % conforming to EN/IEC 60947-2

[Ics] rated service breaking capacity

6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 7.5 kA 75 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60947-2

Limitation class

3 conforming to EN/IEC 60898-1

[Ui] rated insulation voltage

440 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication; Trip indicator

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

6

Height

85 mm

Width

54 mm

Depth

74 mm

Product weight

345 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

20000 cycles

Locking options description

Padlocking device

Connections - terminals

Tunnel type terminals top or bottom 1…10 mm² flexible; Tunnel type terminals top or bottom 1…16 mm² rigid

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Separate block

Standards

EN/IEC 60898-1; EN/IEC 60947-2

Product certifications

CE; BV; RINA; DNV

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.90
