NG125L/C 50-2 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18794 NG125L/C 50-2 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18794
- EAN / GTIN
- 3303430187943
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power loss
- 4.2 W
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated current
- 50 A
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 3
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187943
- SAP 1000039890
- Code 8793470
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Front connection, MasterPact MTZ1 fixed, 4P, top and bottom, 630A-1600A, spare part LV847070SP
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, glazed door, 2000X700X500MM, IP55 NSYSFPN20750TG
Schneider Electric
Illuminated Push Button flush red ring (ZB5FW943)
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX250L, 150KA/415VAC, 4 poles, 250A frame rating, without trip unit C25L4
Schneider Electric
Schneider Electric Upright, PrismaSeT G, 1 mounting upright, L1950MM, IP55 LVS08391
Schneider Electric
Schneider Electric torque limiting breakaway bit - installation accessories - 5 N.m - set of 8 LV426993
Schneider Electric
Mounting plate LGY FC/NSXM-VERT.-B650-PR.SET P
LVS03416
Schneider Electric

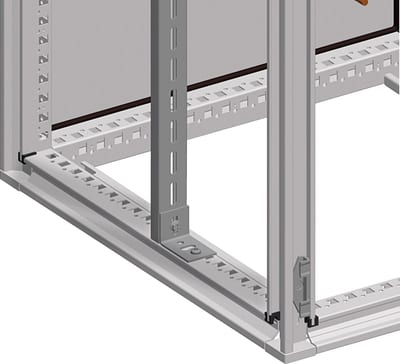

C Rail EN TILKOBL.35X21
