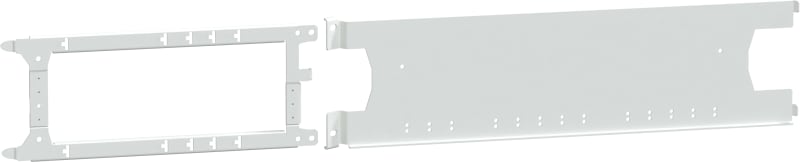

Mounting plate LGY FC/NSXM-VERT.-B650-PR.SET P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03416 Mounting plate Linergy FC-NSXm-tilting or dreiehandtak-vertical mounting in 650mm section-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03416
- EAN / GTIN
- 3606481866660
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle; Linergy Linergy FC device feeder; ComPact ComPact NSXm circuit breaker
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- ComPact: NSXm without earth leakage protection - control: toggle; ComPact: NSXm without earth leakage protection - control: direct rotary handle; ComPact: NSXm integrated earth leakage protection - control: toggle; ComPact: NSXm integrated earth leakage protection - control: direct rotary handle
- Poles description
- 5 x 3P: fixed NSXm vertical installation; 4 x 4P: fixed NSXm vertical installation
- Number of vertical modules [50 mm]
- 5 module(s): NSXm without earth leakage protection , Linergy FC; 5 module(s): NSXm integrated earth leakage protection , Linergy FC
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 580 mm
- Height
- 154 mm
- Depth
- 23 mm
- Product weight
- 2.3 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Number of Units in Package 3
- 32
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481866660
- SAP 1200547268
- Code 82880162
Product Documentation
More from Schneider Electric
Schneider Electric
C Rail EN TILKOBL.35X21
NSYEN20
Schneider Electric
Illuminated push-button, flush, green, raised (ZB4FW133)
Schneider Electric
2 ROD-TYPE Interlock Plates Drawout MTZ1
LV833204SP
Schneider Electric
Push-button, flush, for LED, green, raised (ZB4FH33)
Schneider Electric
Met.plate for 27X27PLS
NSYPMM2727
Schneider Electric
Schneider Electric Base station, Harmony eXLhoist, compact, Receiver, 10 relays outputs, pre wired 1.5 m cable, 48...240V AC ZARB10WSP
Schneider Electric

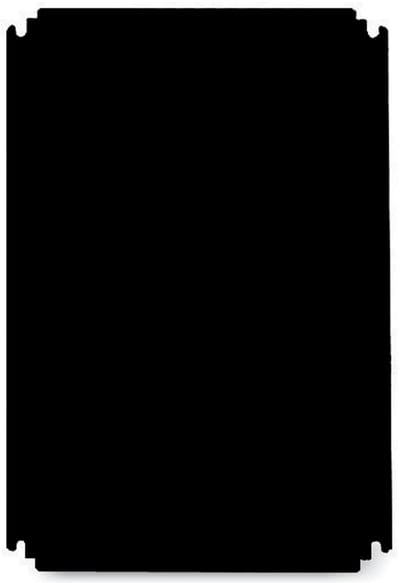

Bakelite Mounting Plate for PLA 125 Enclosure
NSYPMB125
Schneider Electric

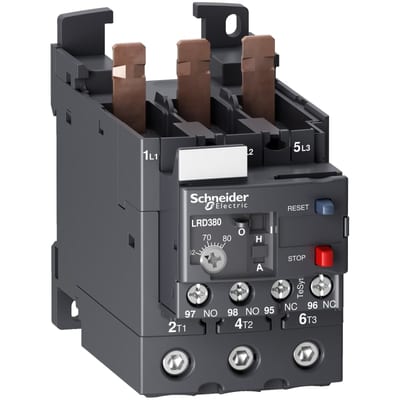

Schneider Electric Thermal overload relay, TeSys Deca, 690VAC, 62 to 80A, 1NO+1NC, class 10A, EverLink BTR screw LRD380
