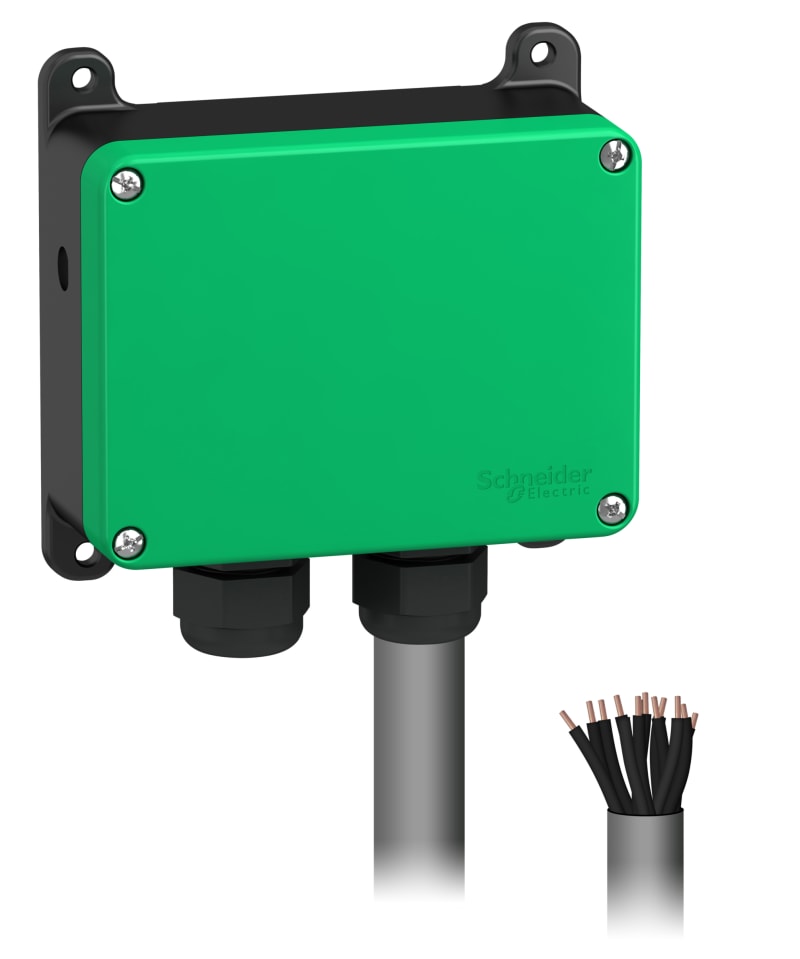

Schneider Electric Base station, Harmony eXLhoist, compact, Receiver, 10 relays outputs, pre wired 1.5 m cable, 48...240V AC ZARB10WSP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZARB10WSP Harmony eXLhoist Compact base station with 10 relay output and 1,5 meter pre-assembled cable 48-240VAC.
Technical Specifications
- Manufacturer part number (MPN)
- ZARB10WSP
- EAN / GTIN
- 3606481389121
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Voltage
- 48-240 V AC
- Range of product
- Harmony eXLhoist
- Product or component type
- Base station
- Device short name
- ZARB
- Product specific application
- Hoisting applications; Material handling
- cable entry
- Cable pre-wired
- Material
- ABS + PC
- [Us] rated supply voltage
- 48...240 V AC
- Provided equipment
- Internal antenna
- Nominal output current
- 0.5 A at 48 V AC conforming to IEC 60947-5-1
- Number of relays
- 10
- Relay type
- Motion relay outputs with 9 NO contact ; Auxiliary relay outputs with 1 NO contact
- Safety outputs
- 2 NC relay outputs
- Maximum switching current
- 10 A
- Maximum switching voltage
- 240 V AC (+/- 20 %)
- Communication network type
- Wireless: Zigbee
- Transmission frequency
- 2.4 GHz
- Maximum sensing distance
- 100 m in free field
- fixing mode
- 4 holes
- Electrical durability
- 100000 cycles
- Mechanical durability
- 10000000 cycles
- Width
- 120 mm
- Height
- 117 mm
- Depth
- 51 mm
- Product weight
- 0.88 kg
- IP degree of protection
- IP66
- Radio agreement
- FCC; IC
- Relative humidity
- 0…97 %
- Ambient air temperature for operation
- -20…55 °C
- Ambient air temperature for storage
- -40…70 °C
- Product certifications
- CE
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481389121
- SAP 1200455871
- Code 82518877
