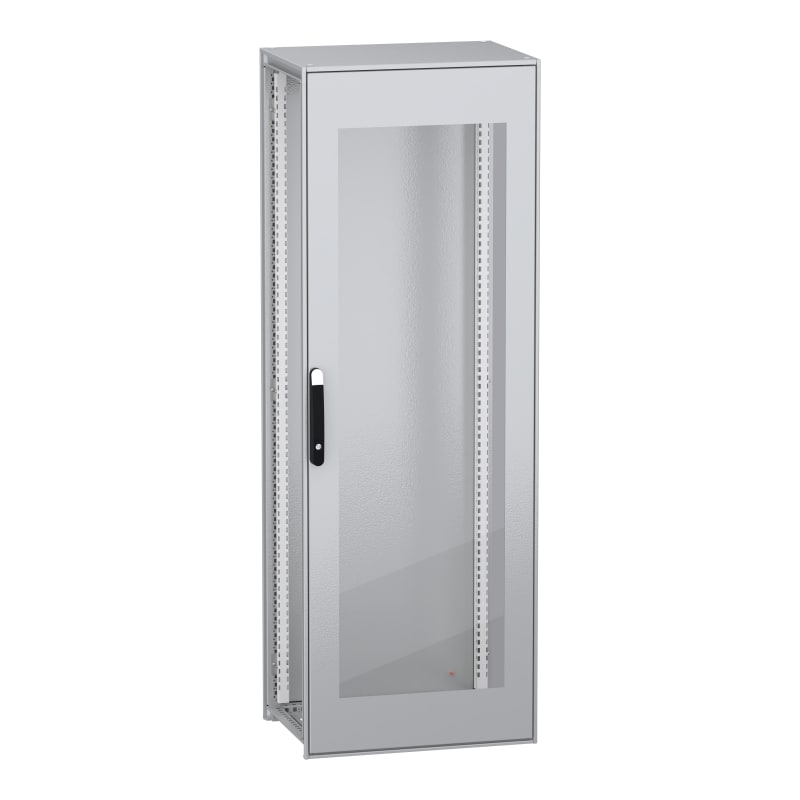

Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, glazed door, 2000X700X500MM, IP55 NSYSFPN20750TG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFPN20750TG Floor-standing cabinet el distribution, PrismaSeT HD, decarbonised steel, glass door door, 2000x700x500mm, IP55.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFPN20750TG
- EAN / GTIN
- 3606486446010
- Sales unit
- pcs
- Colour
- RAL 7035
- Dimensions
- 2000×700×500
- Range
- PrismaSeT
- Extended range
- PrismaSeT HD
- Application
- Low voltage electrical distribution
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2000 mm
- Enclosure nominal width
- 700 mm
- Enclosure nominal depth
- 500 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 4 adaptor upright
- Structure type
- Vertical uprights joined with top and bottom frames; Formed from a single section; Perforated structure with a pitch of 25 mm; Panels and doors built into the structure
- Door opening side
- Reversible (120 °)
- Door type
- Glazed front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Sides of enclosure; Rear; Front
- Removable parts
- Door by screws hinge; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws; Adaptor upright by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Product weight
- 73.5 kg
- Standards
- IEC 62208; IEC 61439-1; IEC 61439-2
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Environmental characteristic
- Harsh environment
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Width
- 700 mm
- Height
- 2000 mm
- Depth
- 500 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486446010
- SAP 1200698119
- Code 83799627
Product Documentation
More from Schneider Electric
Schneider Electric
Illuminated Push Button flush red ring (ZB5FW943)
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX250L, 150KA/415VAC, 4 poles, 250A frame rating, without trip unit C25L4
Schneider Electric
Schneider Electric Upright, PrismaSeT G, 1 mounting upright, L1950MM, IP55 LVS08391
Schneider Electric
Schneider Electric torque limiting breakaway bit - installation accessories - 5 N.m - set of 8 LV426993
Schneider Electric
Mounting plate LGY FC/NSXM-VERT.-B650-PR.SET P
LVS03416
Schneider Electric
C Rail EN TILKOBL.35X21
NSYEN20
Schneider Electric

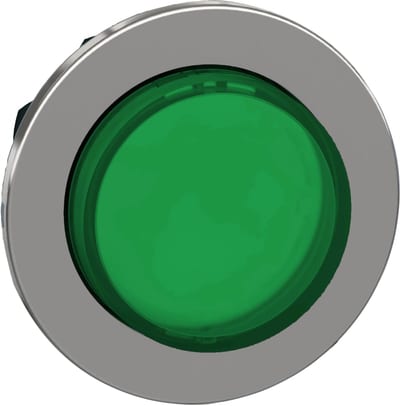

Illuminated push-button, flush, green, raised (ZB4FW133)
Schneider Electric

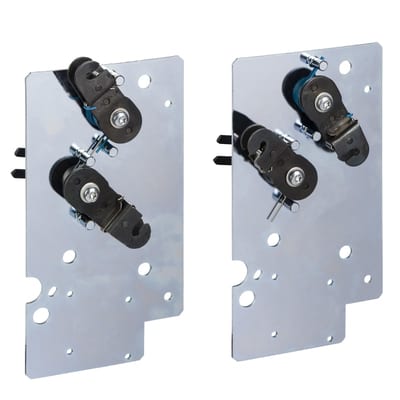

2 ROD-TYPE Interlock Plates Drawout MTZ1
