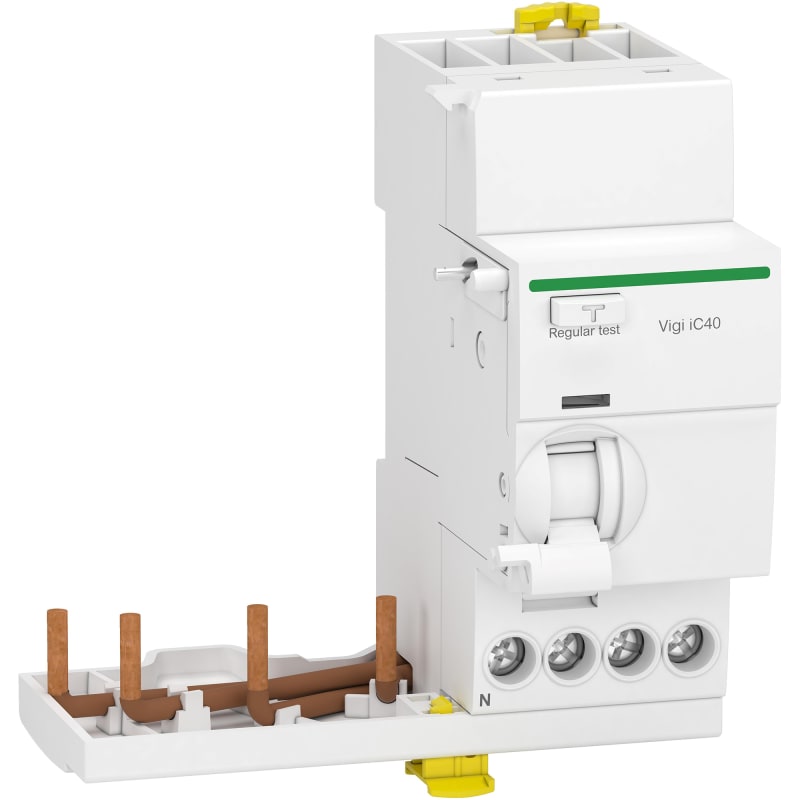

Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 3P+N, 40A, A type, instantaneous, 300MA, 400VAC A9Y81740

Schneider Electric A9Y81740 Acti 9 Vigimodul iC40 3PN 40A 300 mA.

Manufacturer part number (MPN)

A9Y81740

EAN / GTIN

3606481328250

Sales unit

pcs

Package quantity

18 pcs

Rated current

40 A

Range

Acti9

Product name

Acti9 Vigi iC40

Product or component type

Add-on residual current device

Device short name

Vigi iC40

Range compatibility

Acti9 iC40

Poles description

3P + N

Neutral position

Left

[In] rated current

40 A

Network type

AC

Earth-leakage sensitivity

300 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Standards

EN/IEC 61009-2-1

Product certifications

CE

Quality labels

IMQ; OVE

Device location in system

Outgoer

Network frequency

50/60 Hz

[Ue] rated operational voltage

400 V AC 50/60 Hz

Residual current tripping technology

Voltage independent

[Ui] rated insulation voltage

440 V AC 50/60 Hz conforming to EN/IEC 61009-2-1

[Uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 61009-2-1

Local signalling

Fault indication

mounting mode

Clip-on

Mounting support

DIN rail

Electrical connection to mcb

By screws

9 mm pitches

4

Height

99.5 mm

Width

90 mm

Depth

74 mm

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Tunnel type terminal bottom 1…16 mm² rigid; Tunnel type terminal bottom 1…10 mm² flexible

Wire stripping length

14 mm for bottom connection

Tightening torque

2 N.m bottom

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 61009-2-1

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Nominal voltage

400 V

Nominal current

40 A

Rated fault current adjustable

No

Rated fault current

0.3 A

Delay adjustable

No

Number of poles

4

Leakage current type

A

Surge current capacity

0.25 kA

Frequency

50/60 Hz

Rated insulation voltage Ui

440 V

Rated impulse withstand voltage Uimp

4 kV

Connectable conductor cross section solid-core

1–16 mm²

Connectable conductor cross section multi-wired

1–10 mm²

Anti-nuisance tripping version

No

With interlocking device

No

Degree of protection (IP)

IP20

Ambient temperature during operating

-25–60 °C

Country of origin

Spain

HS Code

8536.20
