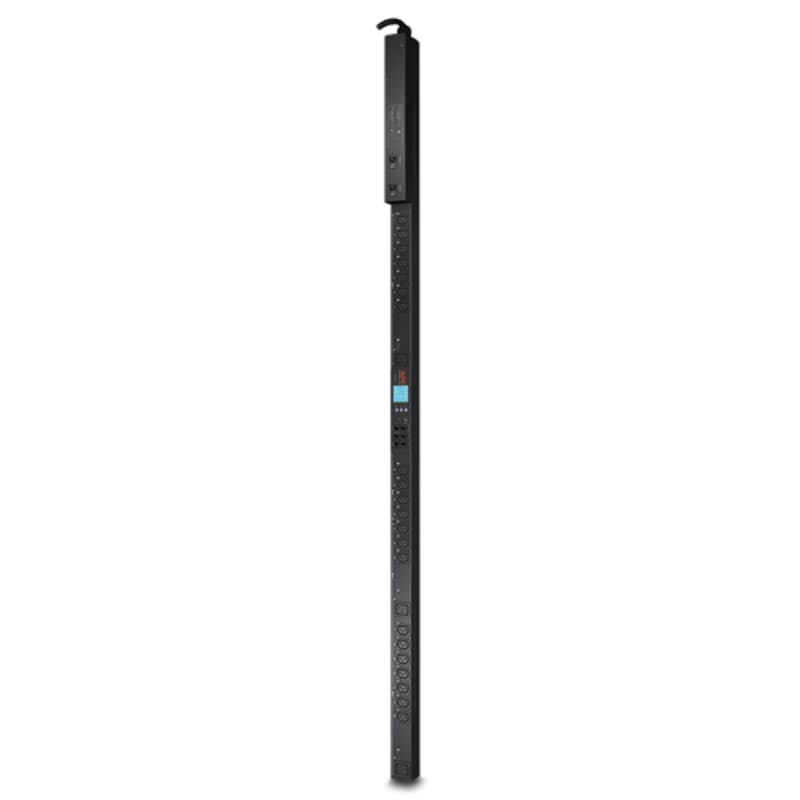

Schneider Electric APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets AP8641

Schneider Electric AP8641 APC by Schneider Electric.

Manufacturer part number (MPN)

AP8641

EAN / GTIN

0731304276975

HS code

8536.90

Sales unit

pcs

Presentation

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Colour

Black

Product or component type

PDU

PDU type

Metered outlet

Cord length

2.9 m

Number of cables

1

Provided equipment

CAN port terminator; Installation guide; Rack mounting brackets; Safety guide; Serial configuration cable

Input Voltage

200 V; 208 V; 230 V

Height

1829 mm

Width

56 mm

Output Voltage

200 V; 208 V

Depth

51 mm

Product weight

8.23 kg

Mounting location

Side

Mounting preference

No preference

Input Plug Type

NEMA L6-30P

mounting mode

Rack-mounted

Rack units

0U

USB compatible

No

Mounting position

Vertical

[In] rated current

24 A

permissible voltage

200…240 V

Max line current

30 A

Input current limits

30 A

Load capacity

4992 VA

Network frequency

50/60 Hz

Outlet type and quantity

21 IEC 60320 C13 ; 3 IEC 60320 C19

Product certifications

cUL listed; PSE; UL listed; VCCI class A

Standards

FCC part 15 class A; ICES-003

Ambient air temperature for operation

-5…60 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Number of Units in Package 1

1

Country of origin

IN

Warranty (in months)

24

HS Code

8536.90

• EAN 0731304276975
• SAP 1200723114
• Code 83853238
