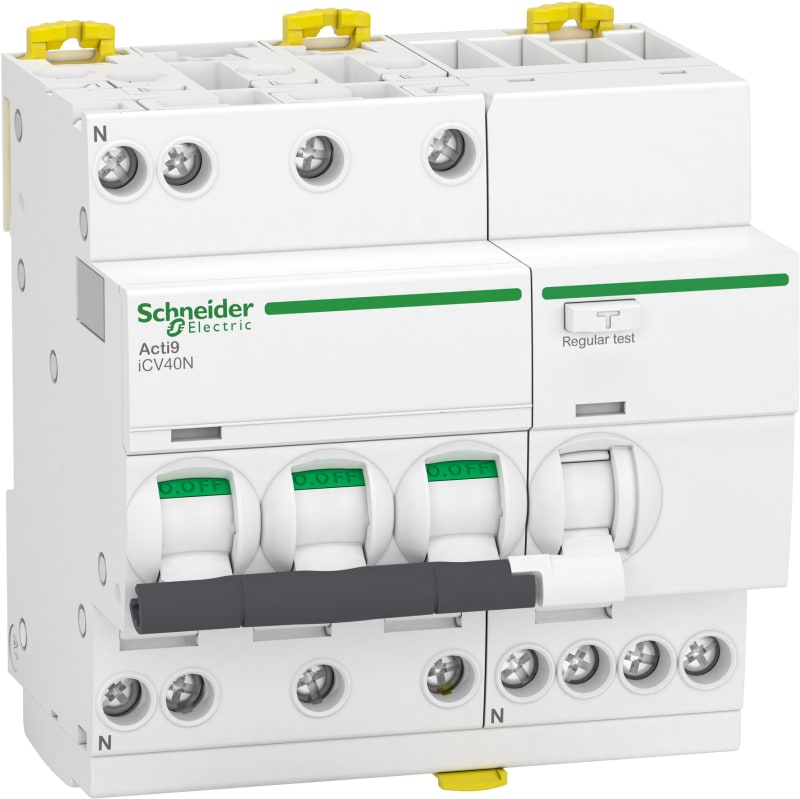

Schneider Electric residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40, 3P+N, 16 A, C Curve, 6000 A, 30 mA, A type A9DC3716

Schneider Electric A9DC3716 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Acti 9 iCV40N RCBO 3PN C 16A 30mA - I2=1,45.

Manufacturer part number (MPN)

A9DC3716

EAN / GTIN

3606481328649

HS code

8536.90

Sales unit

pcs

Package quantity

16 pcs

Rated current

16 A

Range

Acti9

Product name

Acti9 iCV40

Product or component type

Residual current breaker with overcurrent protection (RCBO)

Device short name

iCV40N

Device application

Distribution

Poles description

3P + N

Number of protected poles

3

Neutral position

Left

[In] rated current

16 A

Network type

AC

Network frequency

50/60 Hz

Trip unit technology

Thermal-magnetic

Curve code

C

Earth-leakage sensitivity

30 mA

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Quality labels

EAC; VDE

Device location in system

Outgoer

[Ue] rated operational voltage

400 V AC 50/60 Hz

Magnetic tripping limit

5...10 x In

Residual current tripping technology

Voltage independent

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Breaking capacity

6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1

[Ics] rated service breaking capacity

6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1

Rated breaking and making capacity

Idm 3000 A at 400 V AC 50/60 Hz conforming to EN 61009-2-1; Idm 500 A at 400 V AC 50/60 Hz conforming to IEC 61009-2-1

Limitation class

3 conforming to EN/IEC 61009-2-1

[Ui] rated insulation voltage

440 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

4 kV

Contact position indicator

Yes

Control type

Toggle

Local signalling

Fault indication; ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top or bottom: tooth

Connection pitch

18 mm between phases; 9 mm between phase and neutral

9 mm pitches

10

Height

93 mm

Width

90 mm

Depth

73 mm

Product weight

500 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

20000 cycles

Locking options description

Padlocking device; Sealable

Connections - terminals

Tunnel type terminals top or bottom 1…16 mm² rigid; Tunnel type terminals top or bottom 1…10 mm² flexible

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Integrated

Standards

EN/IEC 61009-2-1

Product certifications

CE

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3

Overvoltage category

III conforming to IEC 60364

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-1

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Country of origin

ES

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481328649
• SAP 1200170795
• Code 82114089
