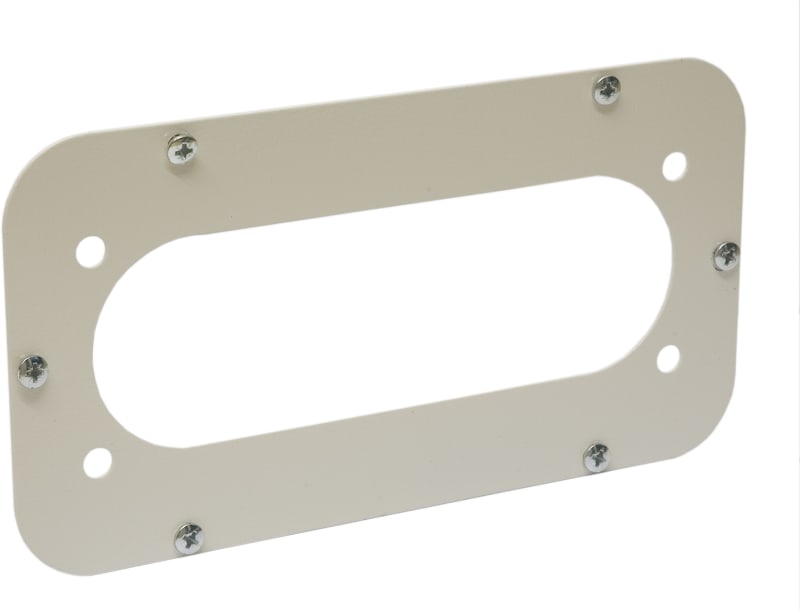

SWM flange,GP m/out. 345X130 1H
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTLDFL — with 1 FL21 cutouts for S3D encl. RAL7035. L345xW130.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTLDFL
- EAN / GTIN
- 3606480168413
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Range
- PanelSeT
- Product or component type
- Cable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose
- Nominal width of the housing
- 400 mm
- Nominal depth of the housing
- 200 mm; 250 mm
- Range compatibility
- PanelSeT S3D; PanelSeT PanelSeT CRNG
- Mounting location
- Enclosure bottom
- Cable gland type
- With FL cut-out
- Device composition
- fixing elements; 1 plate; 1 separate gasket
- Quantity per set
- Set of 1
- Material
- Plate: steel; Seal: polyethylene (PE) foam
- Colour
- Plate: grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Height
- 345 mm; 5 mm
- Width
- 345 mm; Real: 360 mm
- Depth
- 130 mm
- Product weight
- 0.72 kg
- thickness
- 1.5 mm
- Number of cut-out
- 1 cut-out
- Accessory / separate part destination
- For FL21 membranes
- Cut-out dimensions
- 194 x 62.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.500 cm
- Package 1 Width
- 14.000 cm
- Package 1 Length
- 36.000 cm
- Package 1 Weight
- 396.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 15
- Package 2 Height
- 20.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.040 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 480
- Package 3 Height
- 80.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 205.280 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Cable screw gland
- Surface protection
- Untreated
- Pre-stamping
- No
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480168413
- SAP 1000522626
- Code 8854017
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric communication cable, 2 x RJ45 male connectors, 3 m length, set of 5 parts TRV00830
Schneider Electric

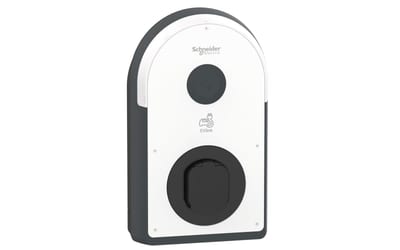

Schneider Electric Charging station, EVlink Pro AC/AC Metal, 22kW, 32A, 3P+N, T2S socket-outlet, RDC-DD 6MA, MID meter EVB3S22N40M
Schneider Electric

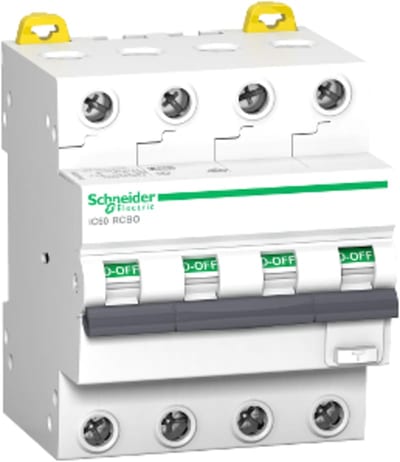

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 4P, 10A, C curve, 6000A/6KA, A type, 300MA A9D52410
Schneider Electric
Schneider Electric auxiliary contacts LUF - 1NO + 1NC LUFN11
Schneider Electric

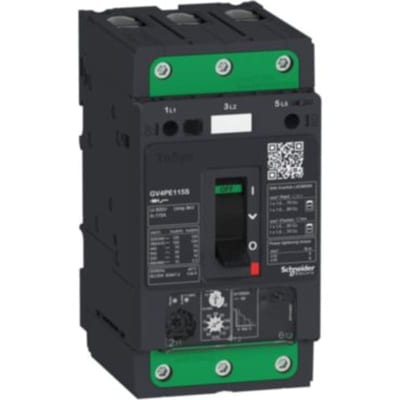

Schneider Electric TeSys GV4 - thermal magnetic circuit breaker - 115A 3P - with Everlink GV4PE115B
Schneider Electric

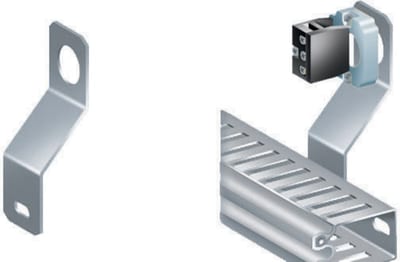

55903 Bracket FOR Ø22 Switch
NSYSPCP
Schneider Electric

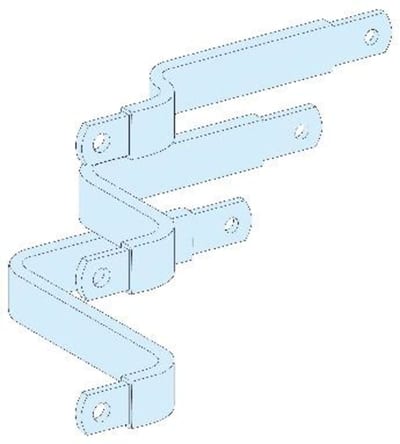

Prefab. Connection Horizontal NSX250/LGY 3P P
LVS04423
Schneider Electric

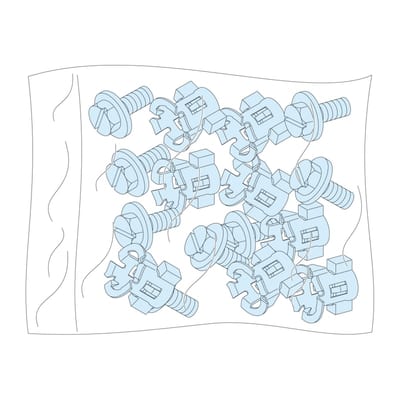

Screws and NUTS-20 pcs for Frame P
