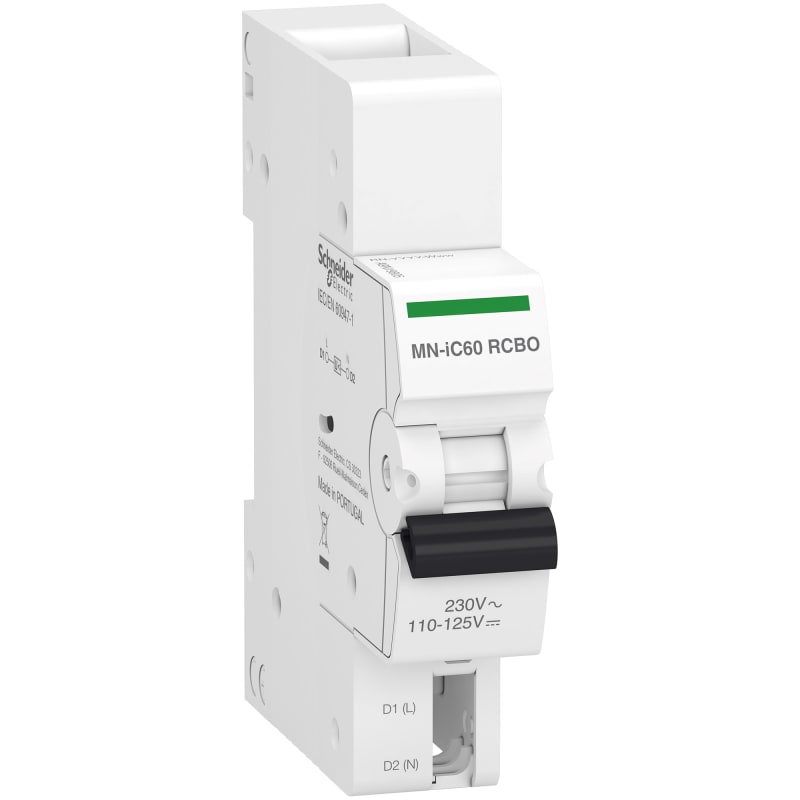

Schneider Electric ACTI9 - undervoltage release - MN-IC60 RCBO - tripping unit - 230 V AC A9A19806
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9A19806 MN underpenningsspole for iC60 RCBO - 230 V 50 Hz.
Technical Specifications
- Manufacturer part number (MPN)
- A9A19806
- EAN / GTIN
- 3606489596057
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- range of product
- Acti9
- Product or component type
- Undervoltage release
- Device short name
- MN
- [Uc] control circuit voltage
- 230 V AC 50 Hz
- Threshold tripping voltage
- 0.35...0.75 Un
- Control type
- Toggle
- 9 mm pitches
- 2
- Response time
- 300 ms
- Range compatibility
- Acti9 iC60 RCBO
- Current consumption
- 12 mA
- Holding current
- 12 mA
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Height
- 80 mm
- Width
- 20 mm
- Depth
- 98 mm
- Product weight
- 62 g
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles
- Connections - terminals
- Screw clamp terminal (bottom) - 1 cable(s) 0.75…2.5 mm² - rigid; Screw clamp terminal (bottom) - 1 cable(s) 0.75…2.5 mm² - flexible; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - rigid; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible; Screw clamp terminal (bottom) - 1 cable(s) 2.5 mm² - flexible with ferrule; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible with ferrule
- Wire stripping length
- 6 mm for bottom connection
- Tightening torque
- 0.6 N.m bottom
- Standards
- EN/IEC 60947-2
- IP degree of protection
- IP2
- Pollution degree
- 2
- Overvoltage category
- III
- Ambient air temperature for operation
- -5…55 °C
- Ambient air temperature for storage
- -40…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 36
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489596057
- SAP 1200501111
- Code 82624935
