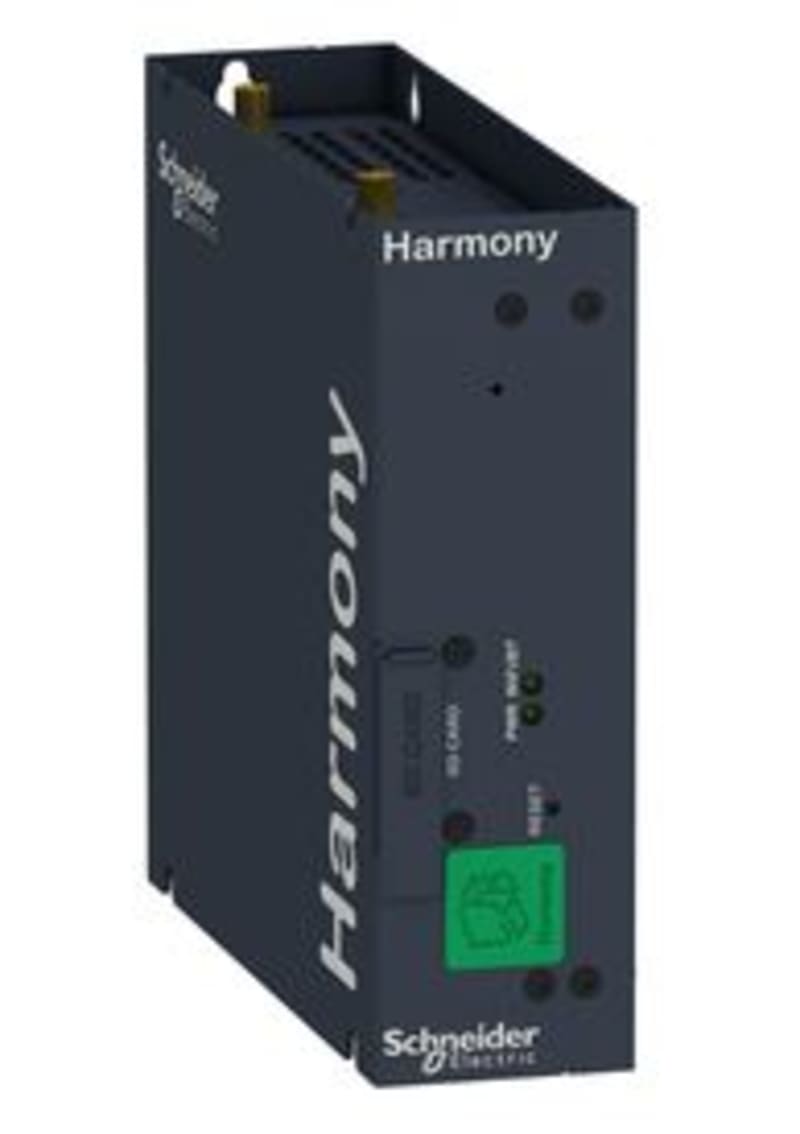

Schneider Electric Charge controller, EVlink, 100 charging stations, dynamic charge management HMIBSCEA53D1EDL
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric HMIBSCEA53D1EDL Energistyring charging stations, EcoStruxure™ EV Charging Expert, Dynamic Plus, 100.
Technical Specifications
- Manufacturer part number (MPN)
- HMIBSCEA53D1EDL
- EAN / GTIN
- 3606481455536
- HS code
- 8504.40
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- EcoStruxure EV Charging Expert
- Product name
- EcoStruxure EV Charging Expert
- Product or component type
- EV charge controller
- Type of installation
- Indoor
- Installed device
- Modem 3G/4G (to be ordered separately); Meter device (to be ordered separately)
- Range compatibility
- EVlink EVlink Smart Wallbox; EVlink EVlink parking; EVlink EVlink City
- Device application
- To manage the overall energy allocated to each vehicle
- mounting mode
- Wall mount
- Mounting support
- Rail
- Mounting position
- Horizontal/vertical
- load management
- Dynamic
- max managed charging stations
- 100 charging stations
- max managed charging points
- 200 charge points
- max nb of zone levels
- 3
- max nb of zones
- 20
- functions selection
- With priority charging profile; With time-of-use settings
- Communication interface
- Ethernet RJ45 Cat.6 to connect device to charging station; Ethernet RJ45 to connect device to charging station; Modem to connect device to central management system
- Communication service
- Web server for OCPP 1.6; Via Modem
- OCPP version
- JSON
- [Us] rated supply voltage
- 12...24 V DC
- Power consumption in W
- 16 W
- Input type
- Energy meter
- Electromagnetic compatibility
- Conducted and radiated emissions class A conforming to EN 55022
- Height
- 150 mm
- Width
- 157 mm
- Depth
- 46 mm
- Product weight
- 1 kg
- Standards
- EN/IEC 61131-2; EN 55011; EN/IEC 61000-6-4
- Product certifications
- CE; EAC; RCM
- Targeted country
- All
- Services
- Commercial service plan 0...50 °C
- IP degree of protection
- IP40
- Ambient air temperature for operation
- 0…50 °C
- Ambient air temperature for storage
- -20…60 °C
- Operating altitude
- 0...2000 m
- Relative humidity
- 10…95 %
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- TW
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481455536
- SAP 1200395372
- Code 82415332
