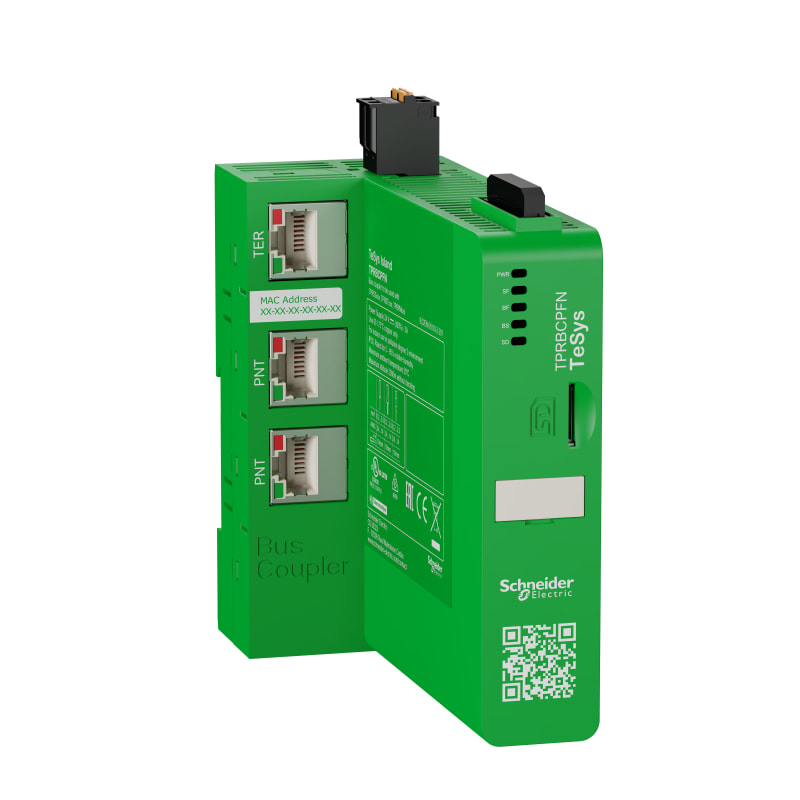

Schneider Electric Bus coupler, TeSys island, PROFINET TPRBCPFN

Schneider Electric TPRBCPFN Buskoppling for TeSys island PROFINET.

Manufacturer part number (MPN)

TPRBCPFN

EAN / GTIN

3606489832711

Sales unit

pcs

Package quantity

16 pcs

Range

TeSys

Product name

TeSys island

Device short name

TPRBC

Product or component type

Bus coupler

Communication port protocol

Profinet IO

Device presentation

Point of connection between a group of starters and an automation controller; Management of the complete island up to 20 modules

Function available

Full integration with SoMove for the control of the island; One single 24V DC power supply for the complete island; Two fieldbus ports for communication with an automation controller; One service port with an embedded webserver for maintenance

Product compatibility

TPRST motor starter; TPRSS SIL motor starter; TPRPM power module; TPRSM SIL interface module; TPRVM voltage interface module; TPRAN analog IO module; TPRDG digital IO module

Integrated connection type

2 RJ45, connector female for protocol Profinet IO, fieldbus port; 1 RJ45, connector female for protocol Ethernet TCP/IP, service port; 1 micro SD card port

Communication service

Conformance class A (CC-A); Net load class 1; DHCP client; SNTP client

Local signalling

1 LED green/yellow with PWR marking for power supply status; 1 LED green/red with SF marking for system fault; 1 LED green/red with BF marking for network status; 1 LED green/red with BS marking for internal bus status; 1 LED green/red with SD marking for SD card access (SD)

[Us] rated supply voltage

24 V DC

Supply voltage limits

20.4…28.8 V DC

Rated current

3 A maximum

Protection type

External fuse, 3 A fast fuse for power supply; Reverse polarity protection for power supply

Power dissipation in W

7 W maximum

Cybersecurity

Achilles certified

Standards

EN/IEC 60947-4-1; CSA C22.2 No 61010-2-201; UL 61010-2-201; EN/IEC 61010-2-201

Product certifications

UL; CSA; EAC; Achilles: level 2; PNO

Mounting mode

Horizontal and vertical (35 mm symmetrical rail)

Connections - terminals

Power supply: removable spring terminal block 2 cable(s) 2.5 mm² (14 AWG) rigid or flexible

Width

50 mm

Height

118 mm

Depth

114 mm

Product weight

0.204 kg

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

-10…60 °C

Relative humidity

5…95 %

Operating altitude

0...2000 m without derating

IP degree of protection

IP20

Pollution degree

2

Protective treatment

TC

Fire resistance

960 °C conforming to UL 94

Shock resistance

15 gn (duration = 11 ms) conforming to IEC 60068-2-27

Vibration resistance

1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4; Power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4; Communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5; Power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5

Number of Units in Package 1

1

Country of origin

ID

Warranty (in months)

18

Voltage type (supply voltage)

DC

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

Yes

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

With potential separation

Yes

Fieldbus connection over separate bus coupler possible

No

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8517.62

• EAN 3606489832711
• SAP 1200419716
• Code 82447956
