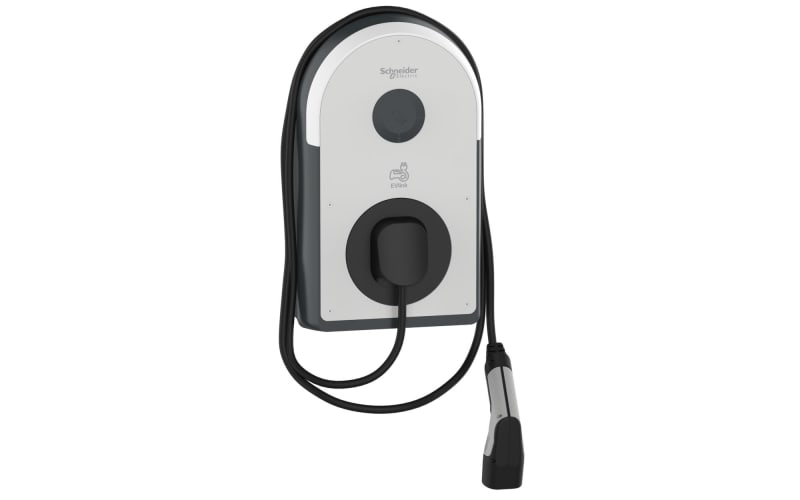

Schneider Electric Charging station, EVlink Pro AC/AC Metal, 7.4kW, 32A, 1P+N, T2 attached cable, RDC-DD 6MA, RCD Asi 30MA, MNx aux. EVB3S07NCA

Schneider Electric EVB3S07NCA EVlink Pro AC, 7,4kW, Fast Cable, 6mA DC-fault detection.

Manufacturer part number (MPN)

EVB3S07NCA

EAN / GTIN

3606482213081

HS code

8544.42

Sales unit

pcs

Package quantity

4 pcs

Power

7.4 kW

Range

EVlink

Product name

EVlink Pro AC

Product or component type

Charging station

Device short name

EVB3

Communication network type

Ethernet; Bluetooth; 3G/4G modem optional; Modbus TCP

Connector type

2 RJ45 for Ethernet LAN connection

Communication port protocol

OCPP 1.6

Communication service

JSON smart charging for OCPP 1.6

Operating mode

Clustered architecture; Standalone

Function available

Diagnosis capabilities; Charge detail records; Load management

Range compatibility

EVlink EcoStruxure EV Charging Expert; EVlink EVlink Pro AC Metal; EcoStruxure EcoStruxure EV Advisor

Type of installation

Indoor; Outdoor

Provided equipment

1 residual direct current detection device (RDC-DD) integrated; 1 residual current device (RCD) integrated; 1 MNx auxiliary contact integrated; 1 energy meter

Accuracy class of energy meter

Class 1

Protection device type

Residual direct current detection device (RDC-DD) - 6 mA; Residual current device (RCD) - 30 mAtype A-SI (Super Immunised)

Poles description

1P + N for power circuit

Mounting mode

Wall-mounted; Wall-mounted (kit enclosure); Floor-standing (pedestal); Floor-standing (kit enclosure)

Mounting support

Pedestal, to be ordered separately; Kit enclosure, to be ordered separately

cable entry

Bottom entry; Top entry; Rear entry

[Us] rated supply voltage

220...240 V AC 50/60 Hz

Nominal output power

7.4 kW 32 A 222...240 V

Socket number

1

Output type

Front side T2 attached cable / silver plated contacts 5 m

Access control system

Badge RFID conforming to ISO/IEC 14443 A and B; Badge RFID conforming to ISO/IEC 15693; Badge NFC; Free access

RFID compatible technology

MIFARE Classic; MIFARE Ultralight; MIFARE Plus

NFC frequency

13.56 MHz

NFC tag type

Type 1; Type 2; Type 4; Type 5

Earthing system

TT; TN-S; TN-C-S; IT (single phase network only allowed, 400V 3 phases network forbidden)

Number of inputs

3

Input type

Binary for power limitation closing contact; Binary for delayed charging closing contact; Binary for vehicle detection closing contact

Control type

can be controlled by remote

Local signalling

1 green LED light strip, function: available; 1 blue LED light strip, function: charging; 1 red LED light strip, function: fault indication

Standards

EN/IEC 61851-1:ed. 3; EN/IEC 62196-1:ed. 2; EN/IEC 62196-2:ed. 1; EN 61000-6-2:2019; EN 61000-6-3:2007; EN 61000-6-3:2011/A1; IEC 60884-1; NF C 61314; ISO 15118

Product certifications

EV Ready; CE

Operating altitude

2000 m without derating

Height

529 mm

Width

317 mm

Depth

183 mm

Product weight

10 kg

Colour

Front face: white (RAL 9003); Housing: dark grey (RAL 7016); Back part: black (RAL 9005)

IP degree of protection

IP55

IK degree of protection

IK10

Ambient air temperature for operation

-30…45 °C

Ambient air temperature for storage

-40…80 °C

Relative humidity

5…95 %

HS Code

8544.42

• EAN 3606482213081
• SAP 1200606880
• Code 82994883
