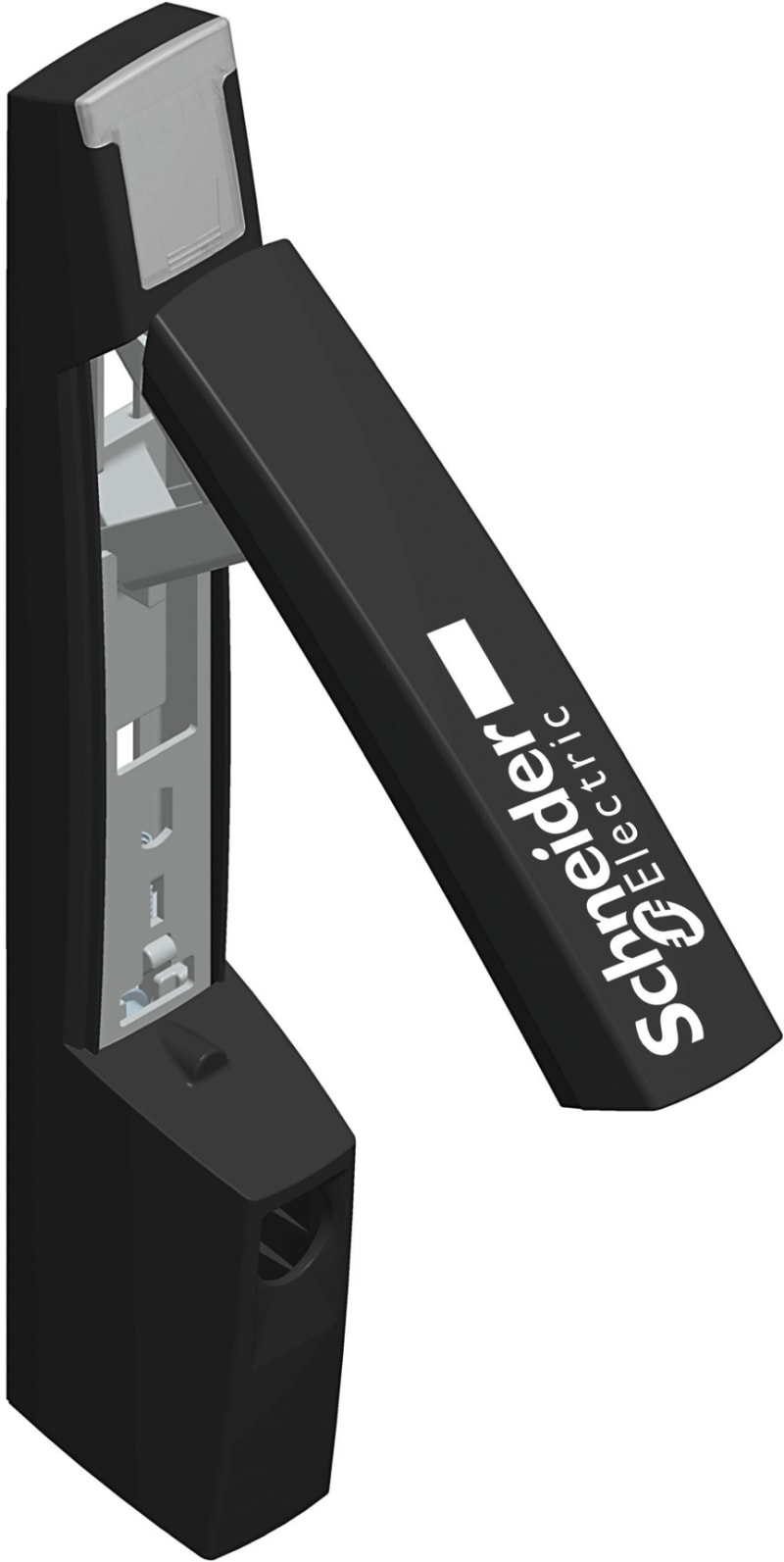

Schneider Electric NSYSFHD2 PanelSeT SF/SM Door Handle DIN/KABA/ASSA

Schneider Electric NSYSFHD2 is a rotary door handle for PanelSeT SF and PanelSeT SM enclosures, designed to accept DIN, KABA and ASSA lock cylinders. Supplied as a single-piece set with handle body and fixing elements for direct door mounting. Body is polyamide 6 with 30% fibreglass and the label frame is polycarbonate.

Manufacturer part number (MPN)

NSYSFHD2

EAN / GTIN

3606480067631

Sales unit

pcs

Range

PanelSeT

Product or component type

Handle

Accessory / separate part category

Locking accessory

Accessory / separate part type

Handle

Device application

Multi-purpose

Mounting support

Direct mounting on door

Range compatibility

PanelSeT SM; PanelSeT SF

Device composition

1 handle; fixing elements

Quantity per set

Set of 1

Material

Handle: polyamide 6 with 30 % fibre glass; Label frame: polycarbonate

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.000 cm

Package 1 Width

6.500 cm

Package 1 Length

28.000 cm

Package 1 Weight

384.000 g

Unit Type of Package 2

PAM

Number of Units in Package 2

600

Package 2 Height

50.000 cm

Package 2 Width

100.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

245.000 kg

Country of origin

BA

Warranty (in months)

18

Padlock locking

No

Toggle

No

Type of handle

Rotary lever

Type of closure

Cylinder

Espagnolette locking (3-point locking)

No

HS Code

7326.90

• EAN 3606480067631
• SAP 1000317585
• Code 81015094
