Schneider Electric PratiKa socket - fast - straight - 32A - 2P + E - 200...250 V AC - panel PKY32G423
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKY32G423 PratiKa socket outlet - fast - straight - 32A - 2P + E - 200.250 V AC - panel.
Technical Specifications
- Manufacturer part number (MPN)
- PKY32G423
- EAN / GTIN
- 3303432012144
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230 V
- Rated current
- 32 A
- Range
- PratiKa
- Product or component type
- Socket
- Device short name
- PratiKa socket
- Plug, socket category
- Low voltage
- Poles description
- 2P + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Panel-mounted
- Plug, socket, control station shape
- Straight
- [In] rated current
- 32 A
- [Ue] rated operational voltage
- 200...250 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 2.5…6 mm²
- Product weight
- 0.221 kg
- Base dimension
- 90 x 100 mm
- Height
- 100 mm
- Width
- 90 mm
- Depth
- 127 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Blue
- Standards
- IEC 60309-2; IEC 60309-1
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432012144
- SAP 1200199304
- Code 82174930
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 48V DC coil, snap-in terminals LC1D09AED
Schneider Electric
Push-button flush red high 1NC
XB5FL4322
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, 2000X700X500MM, IP55, RAL9003 NSYSFPN20750ED
Schneider Electric
Gland Plate-Metal-B300-CABLEF-PRISMASETG (LVS08874)
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 NG125N, 1P, 25A, C curve, 25KA (IEC/EN 60947-2)
18613
Schneider Electric

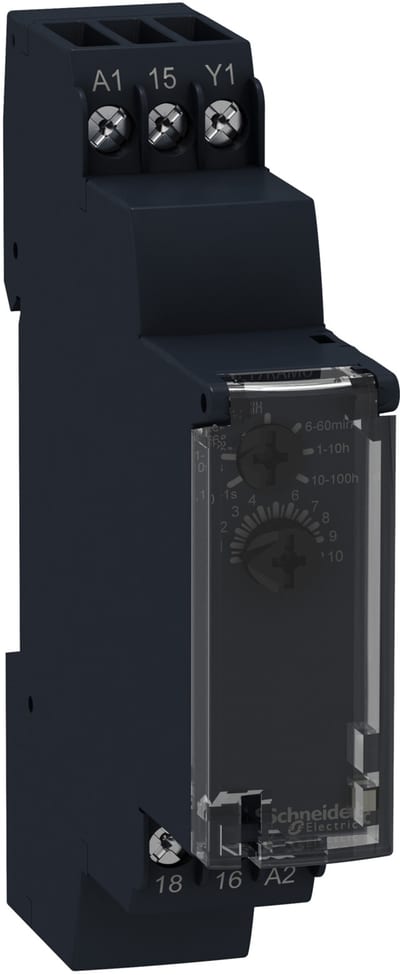

Schneider Electric timing on impulse, one shot timing relay - 1 S..100 h - 24..240 V AC - 1 OC RE17RBMU
Schneider Electric

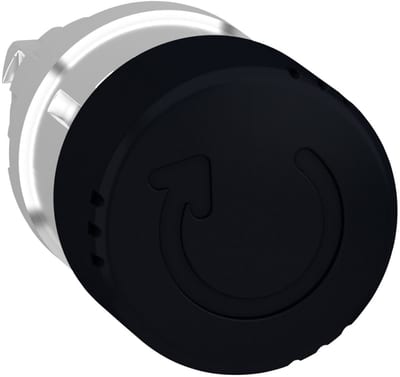

Mushroom Head Push/turn Black Ø30mm
