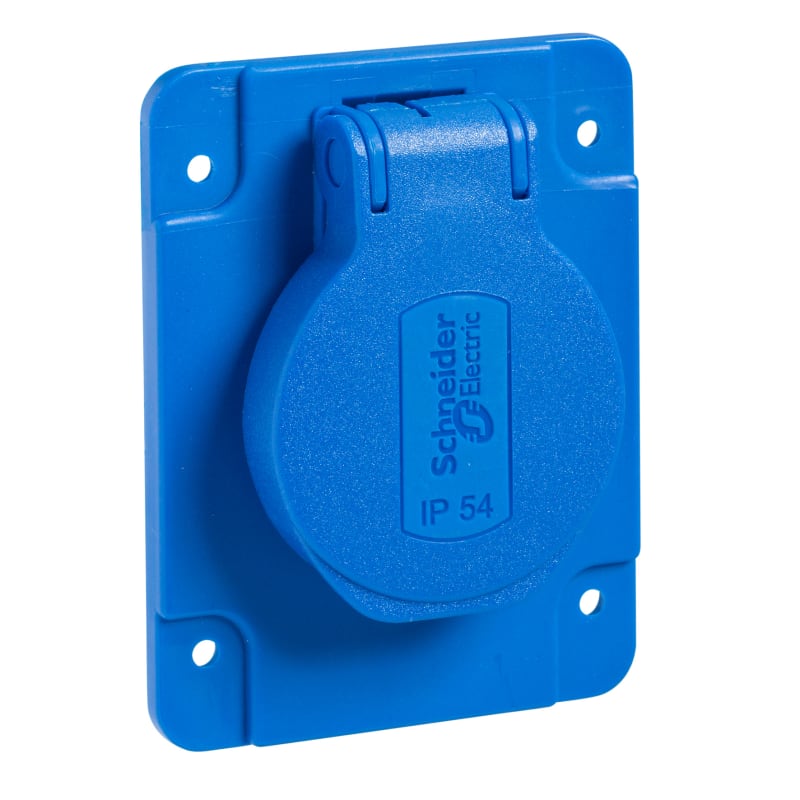

Schneider Electric Socket outlet, Mureva PK, Schuko Panel, 65X85, Blue, IP54 PKS61B
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKS61B PratiKa socket outlet - blue - 2P + E - 10/16 A - 250 V - German - IP54 - plan - rear.
Technical Specifications
- Manufacturer part number (MPN)
- PKS61B
- EAN / GTIN
- 3303432319915
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Number of poles
- 2P
- Range
- Mureva
- Product or component type
- Socket-outlet
- Device short name
- Mureva socket
- Plug, socket category
- Low voltage
- Network type
- AC
- Outlet standard
- CEE 7/3
- Outlet poles configuration
- 2P + E
- [In] rated current
- 10 A; 16 A
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 250 V
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Pins: stainless steel; Springs: stainless steel
- Cover type
- Lid
- Device mounting
- Flush
- mounting mode
- Panel-mounted
- Connections - terminals
- Captive screws
- Location of conductor inlet
- Back
- Outlet standard description
- Side earth
- Product weight
- 0.05 kg
- Base dimension
- 65 x 85 mm
- Height
- 85 mm
- Width
- 65 mm
- Outlet standard deviation
- German
- Depth
- 45.2 mm
- Colour
- Blue
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP54 conforming to IEC 60529
- IK degree of protection
- IK09 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-11
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s ) ; -25…40 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432319915
- SAP 1200221748
- Code 82168783
Product Documentation
