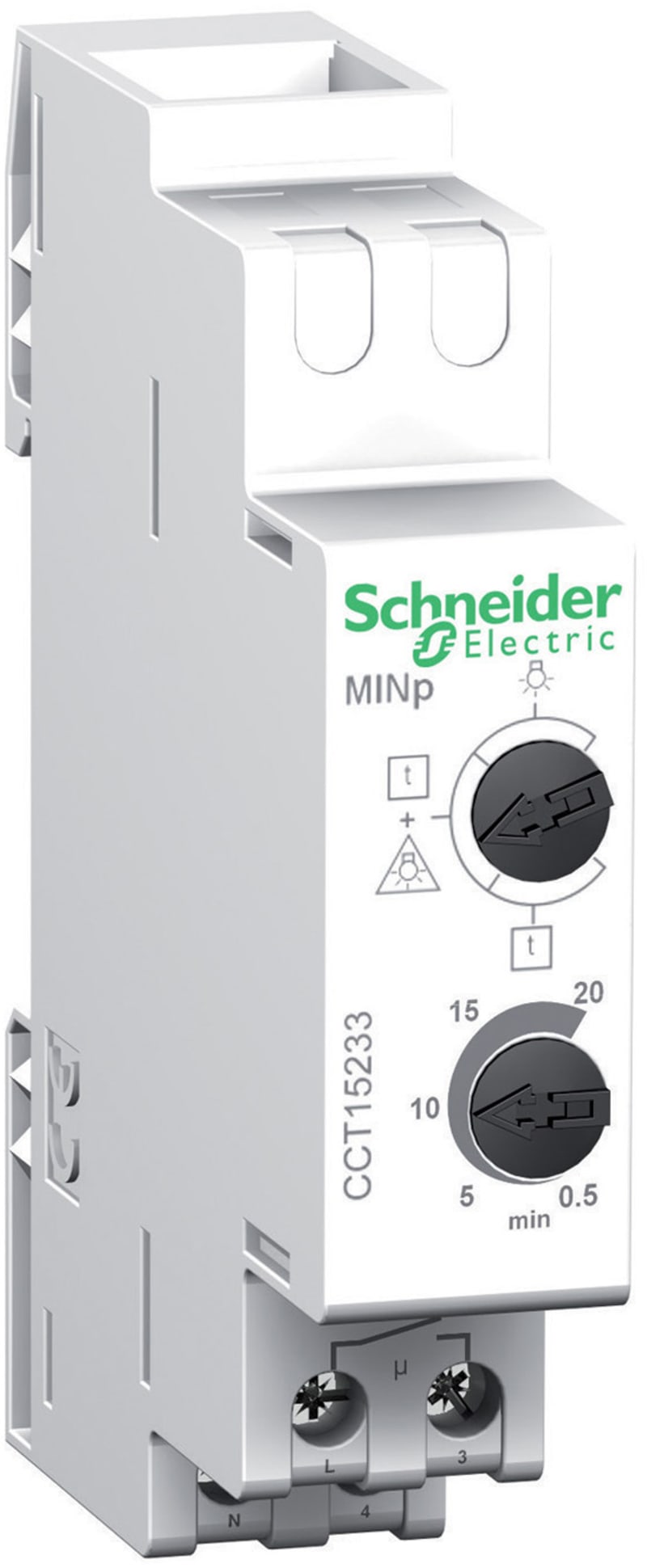

Schneider Electric ACTI9 - MINp - silent electronic timer - adjustable from 0.5 to 20 minutes CCT15233
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric CCT15233 MINS TIME RELAY 0,5-20MIN 230VAC.
Technical Specifications
- Manufacturer part number (MPN)
- CCT15233
- EAN / GTIN
- 3303431062638
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 130 pcs
- range of product
- Acti9
- Product name
- Acti9 MIN
- Device short name
- MINp
- Product or component type
- Silent electronic timer
- Product compatibility
- Mechanical compatibility with electrical comb busbars
- Function available
- Switch-off warning
- Colour tint
- White (RAL 9003)
- Device application
- Building
- Load type
- Fluocompact lampconventional ballast 1500 VA; Fluorescent lamp 22 x electronic ballast 23 W; 230 V AC halogen lamp 3600 W; 230 V AC incandescent lamp 3600 W; Fluorescent lamp 24 x electronic ballast 15 W; Fluorescent lamp 27 x electronic ballast 11 W; Fluorescent lamp 34 x electronic ballast 7 W; Dual mounted fluorescent tubeconventional ballast 3600 VA; Fluorescent tubeelectronic ballast 1000 VA; Non-corrected fluorescent tubeconventional ballast 3600 VA; Parallel-corrected fluorescent tubeconventional ballast 1200 VA; Serial-corrected fluorescent tubeconventional ballast 3600 VA
- Power consumption in VA
- 6 VA
- Maximum switching current
- 16 A - 230 V AC pf = 1
- [Ue] rated operational voltage
- 230 V AC +10 % -15 % at 50/60 Hz
- Time delay
- Adjustable from 0.5 to 20 minutes
- Mounting support
- DIN rail
- 9 mm pitches
- 2
- Connections - terminals
- Screw terminals - <= 6 mm²
- Electrical insulation class
- Class II
- Width
- 18 mm
- Height
- 89 mm
- Depth
- 66 mm
- Product weight
- 103 g
- Ambient air temperature for operation
- -25…50 °C
- IP degree of protection
- IP20 B
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 130
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303431062638
- SAP 1000284710
- Code 830953
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys LT47 electronic over current relays-automatic- 0.5...6 A - 200...240 V AC LT4706M7A
Schneider Electric
Schneider Electric ATS22 - control 110 V - power 208 V (75hp) ATS22C25S6U
Schneider Electric
Schneider Electric TeSys F - contactor coil - LX1FH - 380...415 V AC 40...400 Hz LX1FH3802
Schneider Electric
Schneider Electric Modicon TM3 - 16 inputs (screw) 24VDC TM3DI16
Schneider Electric
Cam switch selector switch 2 pos + 0 bun (K1F003UCH)
Schneider Electric
Schneider Electric A9F94140 ACTI9 IC60L Miniature Circuit Breaker 1P 40 A, Curve C
Schneider Electric

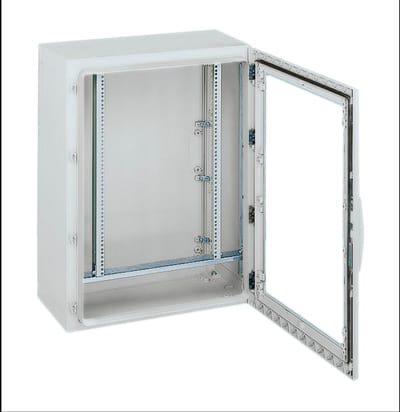

Schneider Electric 19" fixed chassis 26U forPLA enclosure H1500XW750MM NSYBRF26PLAG
Schneider Electric

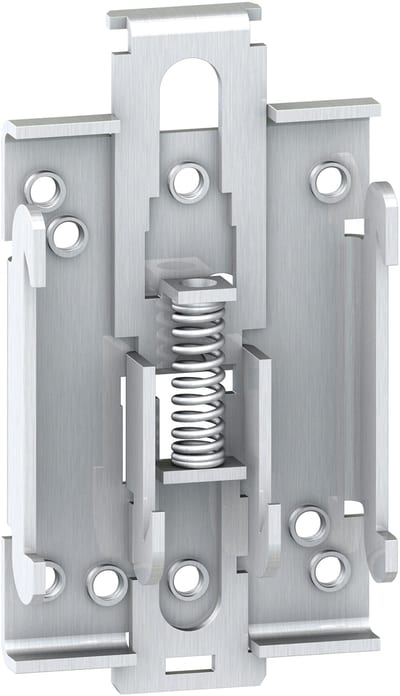

SNAP-Bracket (AX2DL01)
