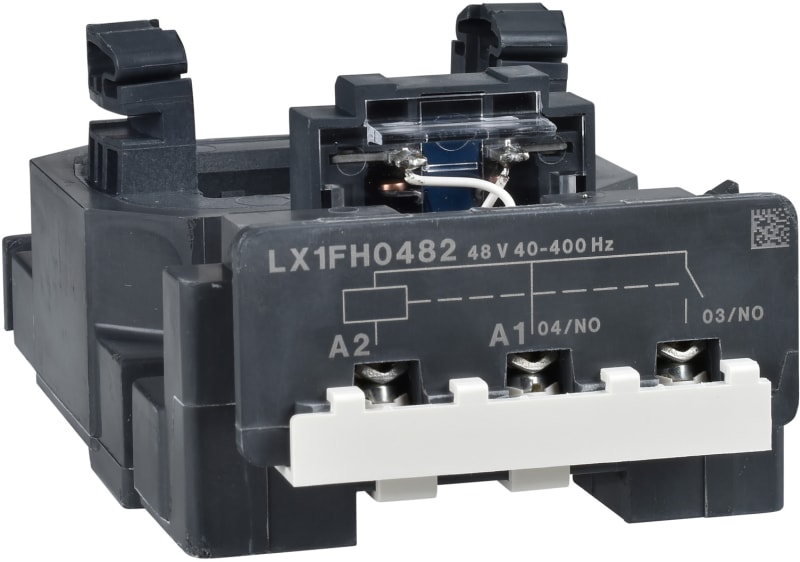

Schneider Electric TeSys F - contactor coil - LX1FH - 380...415 V AC 40...400 Hz LX1FH3802

Schneider Electric LX1FH3802 coil 380V 50/HZ LC1F265-F330.

Manufacturer part number (MPN)

LX1FH3802

EAN / GTIN

3389110553376

Sales unit

pcs

Package quantity

12 pcs

Voltage

380 V

Frequency

50/60 Hz

Range

TeSys

Product or component type

Contactor coil

Device short name

LX1FH

Range compatibility

TeSys TeSys F LC1F contactor

Product compatibility

LC1F330; LC1F265

Control circuit type

AC at 40...400 Hz

[Uc] control circuit voltage

380...415 V AC 40...400 Hz

Average resistance

217 Ohm inrush at 20 °C; 4631 Ohm holding at 20 °C

Operating time

100...170 ms opening; 40...65 ms closing

Mechanical durability

10 Mcycles

Maximum operating rate

2400 cyc/h 55 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.35...0.55 Uc 40...400 Hz (at 55 °C); Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)

Inrush power in VA

650 VA 40...400 Hz cos phi 0.9 (at 20 °C)

Hold-in power consumption in VA

10 VA 40...400 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

8 W at 40...400 Hz

Ambient air temperature for operation

-5…55 °C

Product weight

0.75 kg

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

400 V

Rated control supply voltage AC 60 Hz

400 V

Voltage type for actuating

AC

Country of origin

Czechia

HS Code

8504.50
