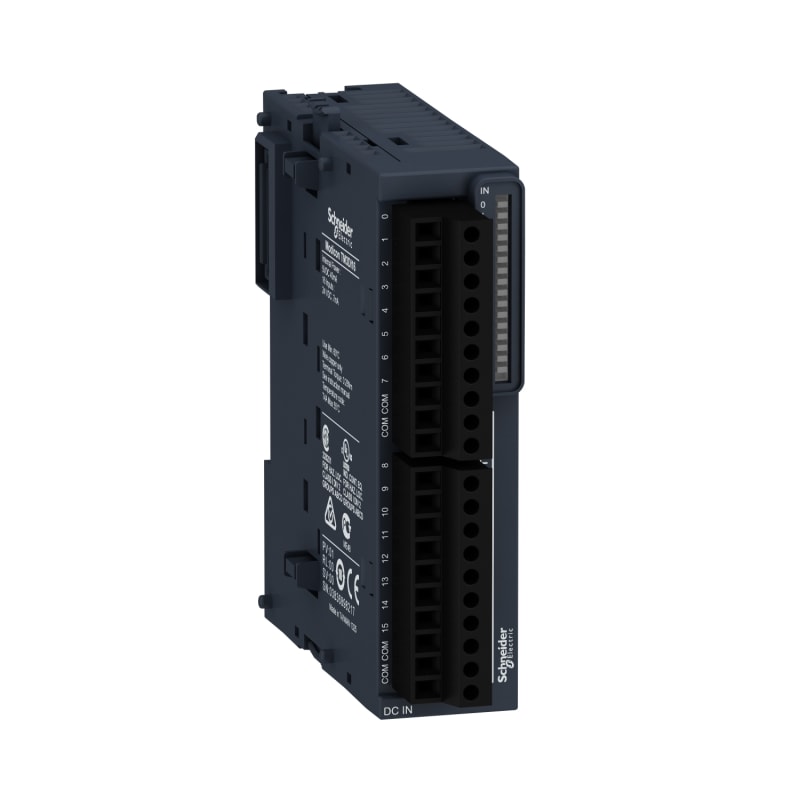

Schneider Electric Modicon TM3 - 16 inputs (screw) 24VDC TM3DI16

Schneider Electric TM3DI16 accessories Modicon PLC — I/O expansion — 16 digital inputs.

Manufacturer part number (MPN)

TM3DI16

EAN / GTIN

3606480611384

Sales unit

pcs

Package quantity

42 pcs

Range of product

Modicon TM3

Product or component type

Discrete input module

Range compatibility

Modicon M241; Modicon M251; Modicon M221; Modicon M262

Device application

Industrial application

Discrete input number

16

Discrete input voltage

24 V DC

Discrete input logic

Sink or source (positive/negative)

Discrete input compatibility

16 conforming to IEC 61131-2 type 3

Discrete input current

7 mA

Voltage state 1 guaranteed

15...28.8 V DC

Voltage state 0 guaranteed

0...5 V DC

Current state 1 guaranteed

>= 2.5 mA

Current state 0 guaranteed

<= 1 mA

Input impedance

3.4 kOhm

Response time on input

4 ms (maximum (turn on)); 4 ms (maximum (turn off))

Safety reliability data

MTBF = 250 years 40 °C

Sensor power supply

19.2…28.8 V

Power supply type

Electronic powered by internal bus

Typical current consumption

34 mA at 5 V DC

Electrical connection

10 x 1...2.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs

Maximum cable distance between devices

Unshielded cable: <50 m for regular input

Isolation between channels and bus

500 V AC

Local signalling

1 LED per channel (green) for input status

Housing colour

Grey

AWG gauge

0.14…1.5 mm² / 26 AWG...16 AWG with solid cable

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Width

27.4 mm

Depth

84.6 mm

Product weight

0.1 kg

IP degree of protection

IP20

Protective treatment

None

Marking

CE

Product certifications

CE; CULus; UKCA; RCM; EAC; CULus HazLoc

Standards

IEC 61131-2

Ambient air temperature for operation

-10…35 °C (vertical installation); -10…55 °C (horizontal installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 % without condensation for operation; 10…95 % without condensation for storage

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on panel mounting; 3 gn (f = 8.4…150 Hz) on panel mounting

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

42

Number of Units in Package 3

504

Country of origin

TW

Warranty (in months)

18

Power consumption

1.1 W

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital inputs

16

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

7 mA

Permitted voltage at input

19.2–28.8 V

Type of voltage (input voltage)

AC/DC

Type of digital output

None

Type of output voltage

AC/DC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Screw connection

Time delay at signal change

4 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
