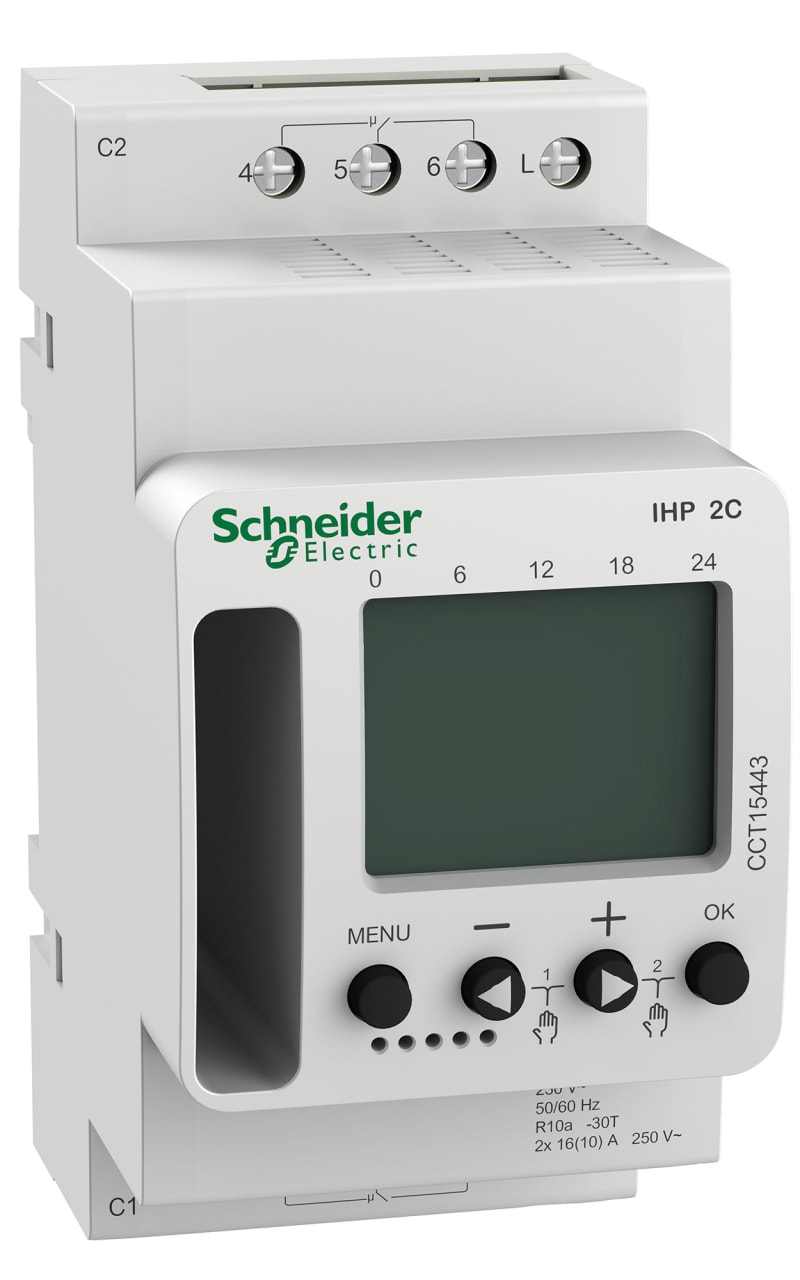

Schneider Electric ACTI9 IHP 2C w (24H/7D) programmable time switch CCT15443

Schneider Electric CCT15443 — Acti9 IHP 2C w (24h/7d) programmable time switch.

Manufacturer part number (MPN)

CCT15443 EAN / GTIN: 3606489524470 Sales unit: pcs Package quantity: 40 pcs range of product: Acti9 Product name: Acti9 IHP Device short name: IHP Product or component type: Programmable digital time switch Device application: Building Number of channels: 2 User language: English; French; German; Dutch; Italian; Spanish; Portuguese; Danish; Norwegian; Swedish; Finnish Colour tint: White Load type: incandescent lamp: 2600 W; halogen lamp: 2600 W; non-corrected fluorescent tube: 2600 VA; serial-compensated fluorescent tube: 2600 VA; parallel compensated fluorescent lamp: 400 VA (48 µF); compact fluorescent lamp: 400 W; = 2 W LED lamp: 200 W Maximum power consumption in W: 0.5 W standby Maximum switching current: 10 A - 250 V AC pf = 0.6; 16 A - 250 V AC pf = 1 minimum switching current: 10 mA 230 V AC; 100 mA 24 V AC/DC [Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz Electrical insulation class: Class II Output type: Dry contact Accuracy: +/- 0.25 s/day 25 °C contacts type: C/O Cycle duration: 24 hours + 7 days Maximum number of switchings: 56 minimum interval duration: 1 min Function available: Code lock function; Holiday schedules; Automatic winter/summer time changeover; On/off permanent switching; Manual operation; On/off switching times; Switch preselection control button type: 4 push-buttons Backup time: 10 years time and program saving Type of setting: Weekly programming Connections - terminals: 2 x 0.5…2.5 mm² screw terminals solid or flexible; 1 x 2.5 mm² screw terminals solid or flexible with sleeve Mounting support: TH35 DIN rail conforming to EN 60715 Width: 45 mm Height: 92.6 mm Depth: 66.7 mm Product weight: 130 g Marking: CE Overvoltage category: Class 3 Function: None Absence for holidays: Yes Time changeover: Automatic Updated by: None Standards: EN 60730-2-7:2010 Ambient air temperature for operation: -30…55 °C ambient air temp for storage/transportation: -30…70 °C Relative humidity: 90 %, non-condensing IP degree of protection: IP20 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 6.500 cm Package 1 Width: 8.000 cm Package 1 Length: 10.200 cm Package 1 Weight: 174.000 g Unit Type of Package 2: S03 Number of Units in Package 2: 40 Package 2 Height: 30.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 7.422 kg Country of origin: DE Warranty (in months): 18 Shortest switching time channel 1: 60 s Shortest switching time channel 2: 60 s Mounting method: DIN rail Supply voltage: 230 V Voltage type (supply voltage): AC Frequency supply voltage: 50–60 Hz Autonomy in hours: 87600 Autonomy in years: 10 Accuracy per day: 0.25 s Text guidance in display: Yes External programming: No With memory card: No 60 min program: Yes 24 h program: Yes Weekly program: Yes Annual program: No Holiday program: Yes Impulse program: No Cycle program: No Astro program: No Random program: No Hour meter: No Mains synchronous: Yes Quartz controlled: Yes Radio-controlled: No GPS (global positioning system): No Contact type: Change-over contact Number of memory locations: 56 Automatic switching summer/winter time: Yes Suitable for manual operation: Yes External push button input: Yes Switching preselection: Yes Nominal switching current at 250 V AC: 16 A Potential free switch contact: Yes Degree of protection (IP): IP20 Width in number of modular spacings: 2.5

HS Code

8536.50

• EAN 3606489524470
• SAP 1200314491
• Code 82302435
