Schneider Electric NSYSBM204012 Metal industrial box plain door H200XW400XD120 IP66 IK10 RAL 7035
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYSBM204012 Metal industrial box plain door H200XW400XD120 IP66 IK10 RAL 7035 is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Dimensions: 200×400×120; Range: PanelSeT; Product name: PanelSeT SBM; Device application: Multi-purpose; Device short name: SBM.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSBM204012
- EAN / GTIN
- 3606480520167
- Sales unit
- pcs
- Dimensions
- 200×400×120
- Range
- PanelSeT
- Product name
- PanelSeT SBM
- Device application
- Multi-purpose
- Category
- Industrial box
- Device short name
- SBM
- enclosure type
- Flat face box
- Enclosure nominal height
- 200 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 120 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 4 cover screw; 1 cover; 1 body
- Body type
- Single piece body folded and welded
- Type of front cover
- Plain door
- Cover fixing
- Half turn metal screw
- Lock type
- Captive screw PZ2 outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Sheet steel
- Surface finish
- Polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV-GL; UL; BV
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Ambient air temperature for storage
- -35…60 °C
- Operating temperature
- -35…80 °C
- Product weight
- 3.078 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 13.500 cm
- Package 1 Width
- 21.500 cm
- Package 1 Length
- 41.500 cm
- Package 1 Weight
- 3.400 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 65
- Package 2 Height
- 120.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 233.000 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Width
- 400 mm
- Height
- 200 mm
- Depth
- 120 mm
- RAL-number
- 7035
- Number of doors
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- Yes
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480520167
- SAP 1000499569
- Code 8615513
Product Documentation
More from Schneider Electric
Schneider Electric
DOUBLE PUSH BUTTON for LIGHT Black KN IN-0 (ZB5AW7A1721)
Schneider Electric
Top plate IP30 PrismaSeT P B650 D600
LVS08636
Schneider Electric
Schneider Electric Off-delay Timing Relay - 0.05S…10MIN - 24…240V AC/DC - 1C/O RE22R1KMR
Schneider Electric
Schneider Electric Switch actuator, SpaceLogic KNX, secure, 230V, 16 AX, 3 binary inputs, white, Supply KNX 18 mA MTN6003-0011
Schneider Electric
DIN-rail terminal 4mm² PE 2P
NSYTRV42PE
Schneider Electric
Schneider Electric differential thermal overload relay, TeSys K, 8...11.5A, class 10A LR2K0316
Schneider Electric
Schneider Electric Trip unit MicroLogic 2.3, ComPacT NSX400/630, 3 poles, electronic basic protections, 400A rating C4032D400
Schneider Electric

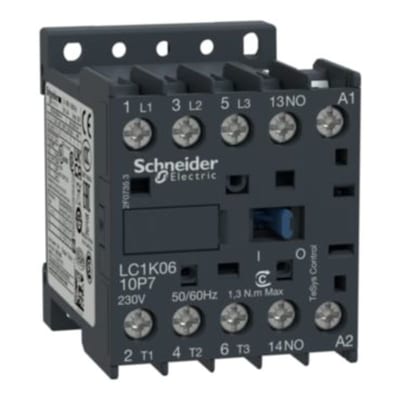

Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 6A, aux. 1NO, 230V AC coil, screw clamp terminals LC1K0610P7
