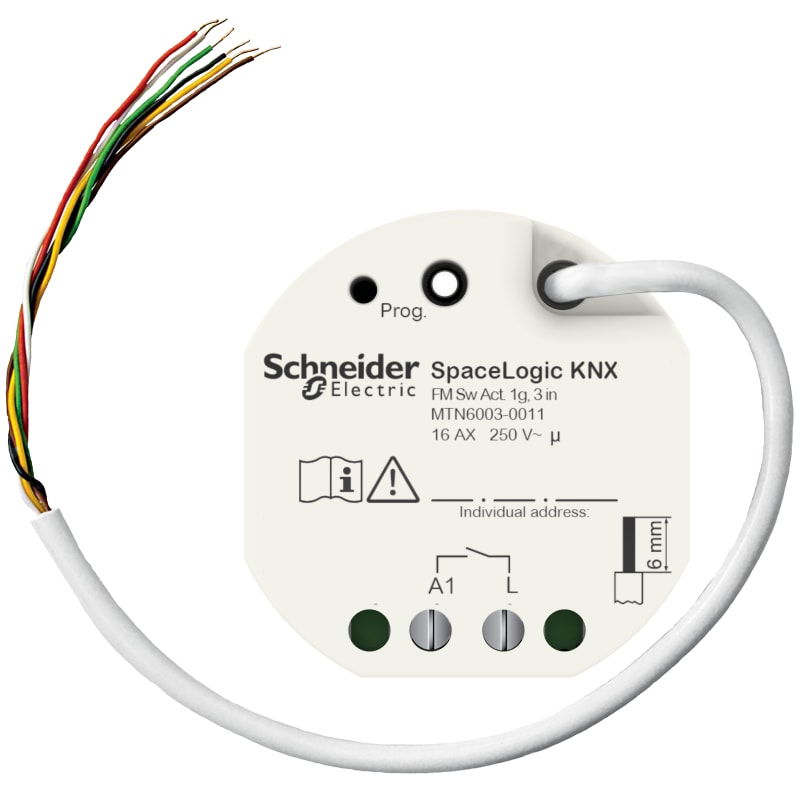

Schneider Electric Switch actuator, SpaceLogic KNX, secure, 230V, 16 AX, 3 binary inputs, white, Supply KNX 18 mA MTN6003-0011

SpaceLogic KNX bryteaktuator, recessed - 1k with 3 binary inputer - 1x 250 V 16 A.

Manufacturer part number (MPN)

MTN6003-0011

EAN / GTIN

3606482046771

Sales unit

pcs

Package quantity

60 pcs

Range of product

SpaceLogic KNX

Product or component type

Switch actuator

Operating mode

KNX bus system

Bus type

KNX

Number of contacts

1

rated input

Signal voltage (SELV): 3 x binary

Switching current

16 AX

Colour tint

White

Power supply input current

18 mA

Device mounting

Flush

[Ue] rated operational voltage

230 V

Network frequency

50/60 Hz

[In] rated current

16 A

Load type

Incandescent lamps: <= 2500 W, 230 V AC; Halogen lamps: <= 2200 W, 230 V AC; Low voltage halogen lamp with electronic transformer: <= 1000 W; Low voltage halogen lamp with wire-wound transformer: <= 1000 VA; Capacitive: , 10 A, 105 µF, 230 V AC; Resistive load: 2500 W

Width

48 mm

Depth

50 mm

Height

28 mm

Maximum cable length

10 m for input

Device presentation

Complete product

Main colour tint

White

IP degree of protection

IP20

Ambient air temperature for operation

-5…45 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

7.600 cm

Package 1 Length

7.600 cm

Package 1 Weight

108.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

60

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.945 kg

Warranty (in months)

18

Bus system KNX Secure

No

Bus system KNX Secure-RF (Radio Frequency)

No

Bus system KNX

Yes

Bus system KNX-RF (Radio Frequency)

No

Bus system radio frequency

No

Bus system LON

No

Bus system Powernet

No

Other bus systems

None

Radio frequency bidirectional

No

Local operation/hand operation

No

With LED indication

Yes

Number of digital inputs

3

Max. switching power

2500 W

Max. switching power LED

400 W

Output power

2500 W

Suitable for C-load

Yes

Max. number of switching contacts

1

Max. switching current

16 A

Rated current

16 A

Different phases connectable

No

With bus connection

Yes

Bus module detachable

No

Min. depth of built-in installation box

50 mm

Modular expandability

No

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

8537.10
