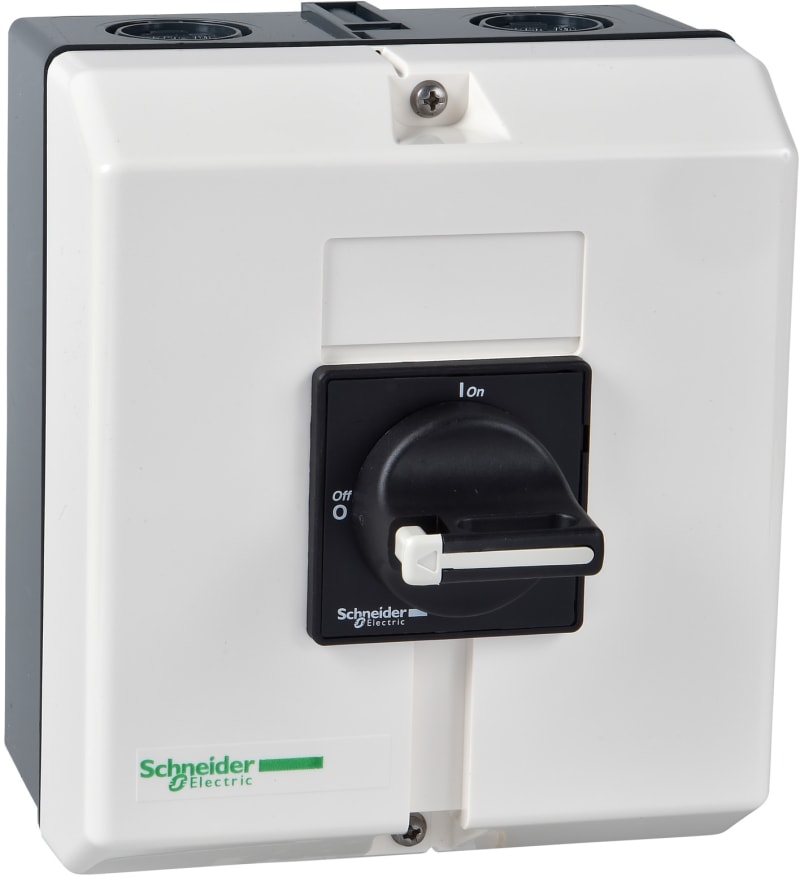

Schneider Electric TeSys Vario enclosed, main switch disconnector, 50A, IP65 VBF3GE

Schneider Electric VBF3GE Safety switch 50A.

Manufacturer part number (MPN)

VBF3GE

EAN / GTIN

3389110543865

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Rated current

50 A

Range

TeSys

Product name

TeSys VARIO

Device short name

VBF

Device application

Preventive maintenance

Product or component type

Enclosed switch-disconnector

Performance level

High performance

Poles description

3P

Control type

Rotary handle

Handle colour

Black

Handle front plate colour

Black

Rotary handle padlocking

1 to 3 padlocks 4…8 mm

Marking

0 - 1

[Ue] rated operational voltage

690 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ithe] conventional enclosed thermal current

50 A

[Ie] rated operational current

41.5 A (AC-23A) at 400 V

Rated operational power in W

22 kW at 400 V (AC-23); 18.5 kW at 400 V (AC-3)

Intermittent duty class

30

Making capacity ( I rms)

630 A at 400 V AC-21A; 630 A at 400 V AC-22A; 630 A at 400 V AC-23A

[Icm] rated short-circuit making capacity

2.1 kA at 400 V at Ipeak

[Icw] rated short-time withstand Rms current

756 A at 400 V duration: 1 s

Rated conditional short-circuit current

10 kA at 400 V - associated fuse 63 A aM; 10 kA at 400 V - associated fuse 63 A gG

Breaking capacity

500 A at 400 V (AC-21A); 500 A at 400 V (AC-22A); 500 A at 400 V (AC-23A)

Mechanical durability

30000 cycles

Electrical durability

30000 cycles AC-21; 30000 cycles DC-1...5

Environmental characteristic

Standard environment

Suitability for isolation

Yes

Connections - terminals

Screw clamp terminals16 mm² - flexible - with cable end; Screw clamp terminals25 mm² - solid

Tightening torque

4 N.m - on screw clamp terminals

Fire resistance

960 °C conforming to IEC 60595-2-1

handle front plate dimension

60 x 60 mm

Height

180 mm

Width

157 mm

Depth

152 mm

Product weight

0.93 kg

Standards

IEC 60204; IEC 60947-4-1

Protective treatment

TC

IP degree of protection

IP65 conforming to IEC 60529

Mechanical robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110543865
• SAP 1000002176
• Code 815928
