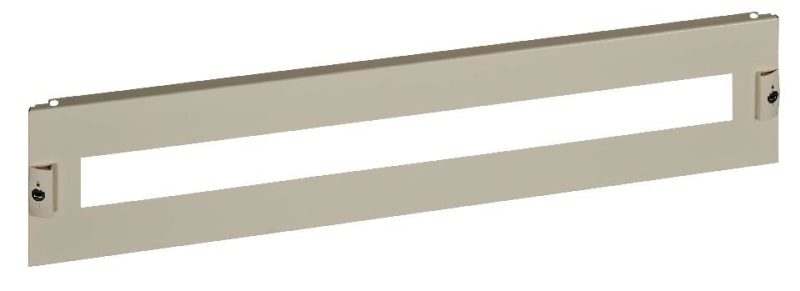

Front plate 3M ModProd B850MM PrismaSeT G
Pricing
Request a quote
We reply within 24 hours
Product Description
Frontplate-3 Modules for Modular products-PrismaSeT G-for 850mm felt.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03216
- EAN / GTIN
- 3606481872753
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Type of front plate
- Modular
- Installed device
- Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A
- Enclosure/cubicle description
- Floor-standing enclosure - width 850 mm
- Connection position
- Direct connection
- 9 mm pitches
- 72
- Number of 18 mm modules per row
- 36
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 850 mm
- Height
- 150 mm
- Product weight
- 0.88 kg
- Quantity per set
- Set of 1
- functional unit
- 850 mm PrismaSeT G floor-standing enclosure Acti 9 modular device <= 40 A fixed 72 direct 3; 850 mm PrismaSeT G floor-standing enclosure Multi9 modular device <= 40 A fixed 72 direct 3
- IP degree of protection
- IP30
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 16.000 cm
- Package 1 Length
- 75.000 cm
- Package 1 Weight
- 907.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 8
- Package 2 Height
- 13.000 cm
- Package 2 Width
- 17.000 cm
- Package 2 Length
- 76.000 cm
- Package 2 Weight
- 7.664 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 264
- Package 3 Height
- 80.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 260.000 kg
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 850 mm
- Material
- Steel
- Number of height units
- 3
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481872753
- SAP 1200546619
- Code 82880518
