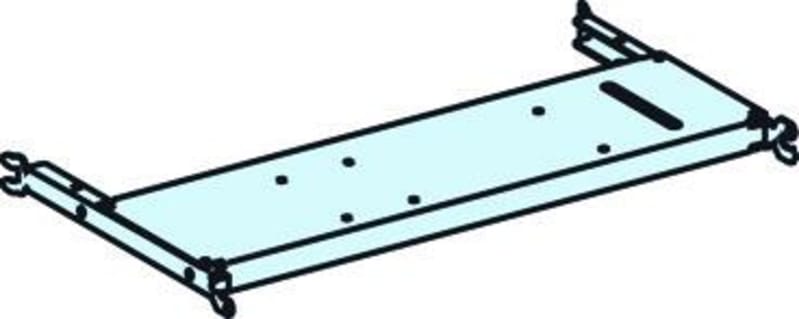

Mounting plate MTZ2 fast/withdrawable Prisma P

Schneider Electric LVS03500 — Mounting Plate Vertical Fixed/Withd. MTZ2/NW 3P/4P W650 PrismaSeT P.

Manufacturer part number (MPN)

LVS03500

EAN / GTIN

3606481874610

Sales unit

pcs

Package quantity

6 pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P cubicle

installation description

Cubicle - width 650 mm depth 600 mm; Cubicle - width 650 mm depth 1000 mm

Installed device

Masterpact: drawout NW08...16 - control: toggle - vertical installation; Masterpact: fixed NW08...16 - control: toggle - vertical installation; Masterpact: drawout NW20...25 - control: toggle - vertical installation; Masterpact: fixed NW20...25 - control: toggle - vertical installation; Masterpact: drawout NW32 - control: toggle - vertical installation; Masterpact: fixed NW32 - control: toggle - vertical installation

Poles description

1 x 3P: drawout NW08...16 vertical installation; 1 x 3P: fixed NW08...16 vertical installation; 1 x 4P: drawout NW08...16 vertical installation; 1 x 4P: fixed NW08...16 vertical installation; 1 x 3P: drawout NW20...25 vertical installation; 1 x 3P: fixed NW20...25 vertical installation; 1 x 4P: drawout NW20...25 vertical installation; 1 x 4P: fixed NW20...25 vertical installation; 1 x 3P: drawout NW32 vertical installation; 1 x 3P: fixed NW32 vertical installation; 1 x 4P: drawout NW32 vertical installation; 1 x 4P: fixed NW32 vertical installation

Number of vertical modules [50 mm]

36 module(s): NW08...16, front connection on adaptor in 650 mm Widecubicle; 27 module(s): NW08...16, front connection on Canalis in 650 mm Widecubicle; 15 module(s): NW08...16, rear connection on adaptor in 650 mm Widecubicle; 19 module(s): NW08...16, front connection on adaptor in 650 mm Widecubicle; 17 module(s): NW08...16, rear connection on Canalis in 650 mm Widecubicle; 36 module(s): NW08...16, front connection on busbar in 650 mm Widecubicle; 18 module(s): NW08...16, front connection on adaptor in 650 mm Widecubicle; 14 module(s): NW08...16, rear connection on adaptor in 650 mm Widecubicle; 16 module(s): NW08...16, rear connection on Canalis in 650 mm Widecubicle; 36 module(s): NW20...25, front connection on adaptor in 650 mm Widecubicle; 15 module(s): NW20...25, rear connection on adaptor in 650 mm Widecubicle; 20 module(s): NW20...25, front connection on adaptor in 650 mm Widecubicle; 28 module(s): NW20...25, front connection on Canalis in 650 mm Widecubicle; 17 module(s): NW20...25, rear connection on Canalis in 650 mm Widecubicle; 36 module(s): NW20...25, front connection on busbar in 650 mm Widecubicle; 19 module(s): NW20...25, front connection on adaptor in 650 mm Widecubicle; 14 module(s): NW20...25, rear connection on adaptor in 650 mm Widecubicle; 16 module(s): NW20...25, rear connection on Canalis in 650 mm Widecubicle; 36 module(s): NW32, front connection on adaptor in 650 mm Widecubicle; 15 module(s): NW32, rear connection on adaptor in 650 mm Widecubicle; 20 module(s): NW32, front connection on adaptor in 650 mm Widecubicle; 28 module(s): NW32, front connection on Canalis in 650 mm Widecubicle; 17 module(s): NW32, rear connection on Canalis in 650 mm Widecubicle; 36 module(s): NW32, front connection on busbar in 650 mm Widecubicle; 19 module(s): NW32, front connection on adaptor in 650 mm Widecubicle; 14 module(s): NW32, rear connection on adaptor in 650 mm Widecubicle; 16 module(s): NW32, rear connection on Canalis in 650 mm Widecubicle

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

650 mm

Height

30 mm

Product weight

3.82 kg

Functional unit

650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on adaptor 36 1087.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on Canalis 27 1087.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 rear connection on adaptor 15 487.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on adaptor 19 687.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 rear connection on Canalis 17 837.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on busbar 36 1087.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 front connection on adaptor 18 637.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 rear connection on adaptor 14 437.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 front connection on Canalis 27 1087.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 rear connection on Canalis 16 787.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 front connection on busbar 36 1037.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on adaptor 36 1087.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on Canalis 27 1087.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 rear connection on adaptor 15 487.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on adaptor 19 687.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 rear connection on Canalis 17 837.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 4P 1 front connection on busbar 36 1087.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 front connection on adaptor 18 637.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 rear connection on adaptor 14 437.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 front connection on Canalis 27 1087.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 rear connection on Canalis 16 787.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 4P 1 front connection on busbar 36 1037.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 3P 1 front connection on adaptor 36 1087.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 3P 1 rear connection on adaptor 15 487.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 3P 1 front connection on adaptor 20 737.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 3P 1 front connection on Canalis 28 1137.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 3P 1 rear connection on Canalis 17 837.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 3P 1 front connection on busbar 36 1087.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 3P 1 front connection on adaptor 19 687.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 3P 1 rear connection on adaptor 14 437.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 3P 1 front connection on Canalis 28 1137.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 3P 1 rear connection on Canalis 16 787.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 3P 1 front connection on busbar 36 1037.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 4P 1 front connection on adaptor 36 1087.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 4P 1 rear connection on adaptor 15 487.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 4P 1 front connection on adaptor 20 737.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 4P 1 front connection on Canalis 28 1137.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 4P 1 rear connection on Canalis 17 837.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 4P 1 front connection on busbar 36 1087.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 4P 1 front connection on adaptor 19 687.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 4P 1 rear connection on adaptor 14 437.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 4P 1 front connection on Canalis 28 1137.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 4P 1 rear connection on Canalis 16 787.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 4P 1 front connection on busbar 36 1037.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on adaptor 36 1087.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 rear connection on adaptor 15 487.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on adaptor 20 737.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on Canalis 28 1137.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 rear connection on Canalis 17 837.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on busbar 36 1087.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 front connection on adaptor 19 687.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 rear connection on adaptor 14 437.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 front connection on Canalis 28 1137.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 rear connection on Canalis 16 787.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 front connection on busbar 36 1037.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 4P 1 front connection on adaptor 36 1087.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 4P 1 rear connection on adaptor 15 487.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 4P 1 front connection on adaptor 20 737.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 4P 1 front connection on Canalis 28 1137.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 4P 1 rear connection on Canalis 17 837.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 4P 1 front connection on busbar 36 1087.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 4P 1 front connection on adaptor 19 687.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 4P 1 rear connection on adaptor 14 437.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 4P 1 front connection on Canalis 28 1137.5 mm; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 4P 1 rear connection on Canalis 16 787.5 mm; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 4P 1 front connection on busbar 36 1037.5 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

20.500 cm

Package 1 Length

57.000 cm

Package 1 Weight

3.779 kg

Unit Type of Package 2

BB1

Number of Units in Package 2

6

Package 2 Height

29.000 cm

Package 2 Width

40.000 cm

Package 2 Length

59.000 cm

Package 2 Weight

23.540 kg

Unit Type of Package 3

P12

Number of Units in Package 3

72

Package 3 Height

102.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

286.088 kg

Country of origin

FR

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

HS Code

7326.90

• EAN 3606481874610
• SAP 1200546693
• Code 82880514
