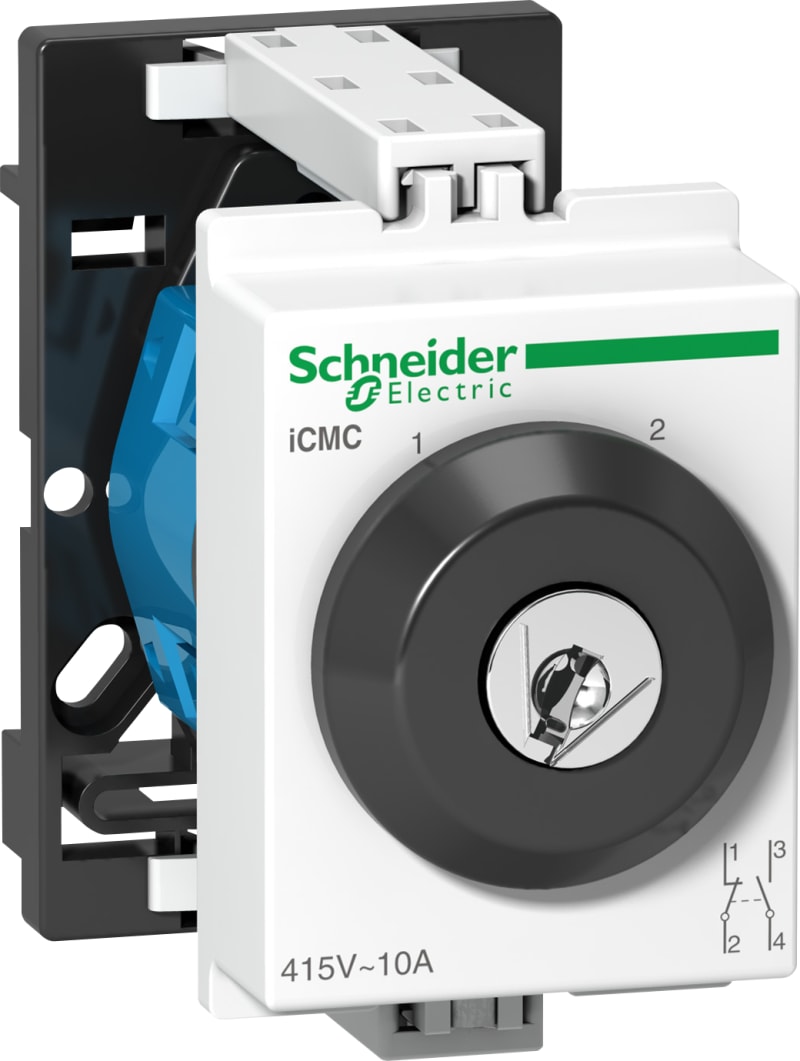

Schneider Electric 2 positions with key switch iCMC 10A 2P U 415V CA A9E15123

Schneider Electric A9E15123 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Selector switch iCMC 2-pos 1NO + 1NC.

Manufacturer part number (MPN)

A9E15123

EAN / GTIN

3606480377013

Sales unit

pcs

Package quantity

80 pcs

Contact configuration

1 NO + 1 NC

range of product

Acti9

Product name

Acti9 iCM

Product or component type

Selector switch

Device short name

iCMC

Device application

Electrical circuit control

Contacts type and composition

1 NO + 1 NC

[Ue] rated operational voltage

415 V AC 50/60 Hz

Standards

UL; EN 60947-3; IEC 60947-3; VDE 0660 part 107

[Ie] rated operational current

10 A

Maximum operating voltage

440 V

Control type

Rotary handle 2 positions

Marking

1 - 2

Lock type

Key lock

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

4

Height

60 mm

Width

36 mm

Depth

72 mm

Product weight

70 g

Colour

White

Mechanical durability

1000000 cycles

Electrical durability

AC-21A: 200000 cycles

Connections - terminals

Jumper terminals1.5 mm²

Wire stripping length

9 mm for downside connection

Tightening torque

1 N.m downside

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-25…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

80

Warranty (in months)

18

Switching function

Control switch

Number of contacts as normally open contact

1

Number of contacts as normally closed contact

1

Number of poles

2

Rated current

10 A

Rated voltage

415 V

Min. rated voltage

415 V

Voltage type

AC

With signal lamp

No

Colour calotte

White

Width in number of modular spacings

2

Built-in depth

72 mm

Degree of protection (IP)

IP40

Country of origin

Austria

HS Code

8536.50

• EAN 3606480377013
• SAP 1000343240
• Code 81003140
