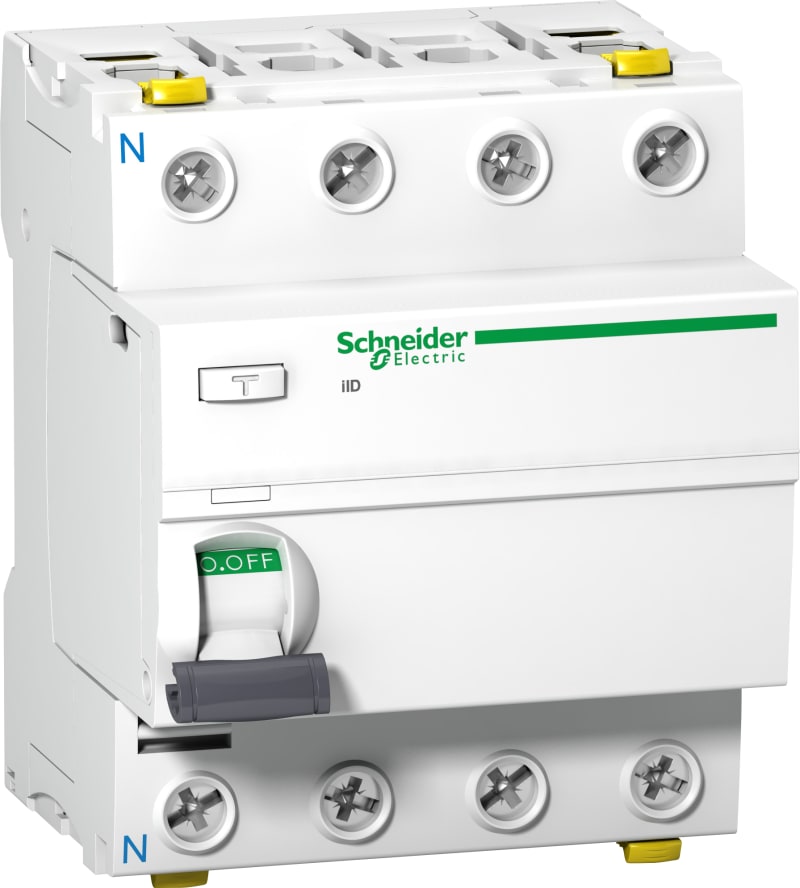

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 100A, A type, 300MA, selective, double terminal A9Z25491
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9Z25491 Residual current circuit breaker iID 4P 100A 300mA-S A.
Technical Specifications
- Manufacturer part number (MPN)
- A9Z25491
- EAN / GTIN
- 3606480443398
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 27 pcs
- Rated current
- 100 A
- Number of poles
- 4P
- Range
- Acti9
- Product name
- Acti9 iID
- Product or component type
- Residual current circuit breaker (RCCB)
- Device short name
- iID
- Poles description
- 4P
- Neutral position
- Left
- [In] rated current
- 100 A
- Network type
- AC
- Earth-leakage sensitivity
- 300 mA
- Earth-leakage protection time delay
- Selective
- Earth-leakage protection class
- Type A
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 400...415 V AC 50/60 Hz
- Residual current tripping technology
- Voltage independent
- Rated breaking and making capacity
- Idm 1500 A; Im 1500 A
- Rated conditional short-circuit current
- 10 kA
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 6 kV
- Contact position indicator
- Yes
- Control type
- Toggle
- mounting mode
- Clip-on
- Mounting support
- 35 mm DIN rail
- 9 mm pitches
- 8
- Height
- 91 mm
- Width
- 72 mm
- Depth
- 73 mm
- Product weight
- 370 g
- Colour
- White (RAL 9003)
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles
- Locking options description
- Padlocking device
- Connections - terminals
- Double terminal front 1…35 mm² rigid; Double terminal front 1…25 mm² flexible; Double terminal front 1…25 mm² flexible with ferrule; Double terminal back 1…25 mm² rigid; Double terminal back 1…16 mm² flexible; Double terminal back 1…16 mm² flexible with ferrule
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 3.5 N.m top or bottom
- Standards
- EN/IEC 61008-1; EN/IEC 61008-2-1
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3
- Electromagnetic compatibility
- 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61008-1
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480443398
- SAP 1000343958
- Code 81006744
Product Documentation
