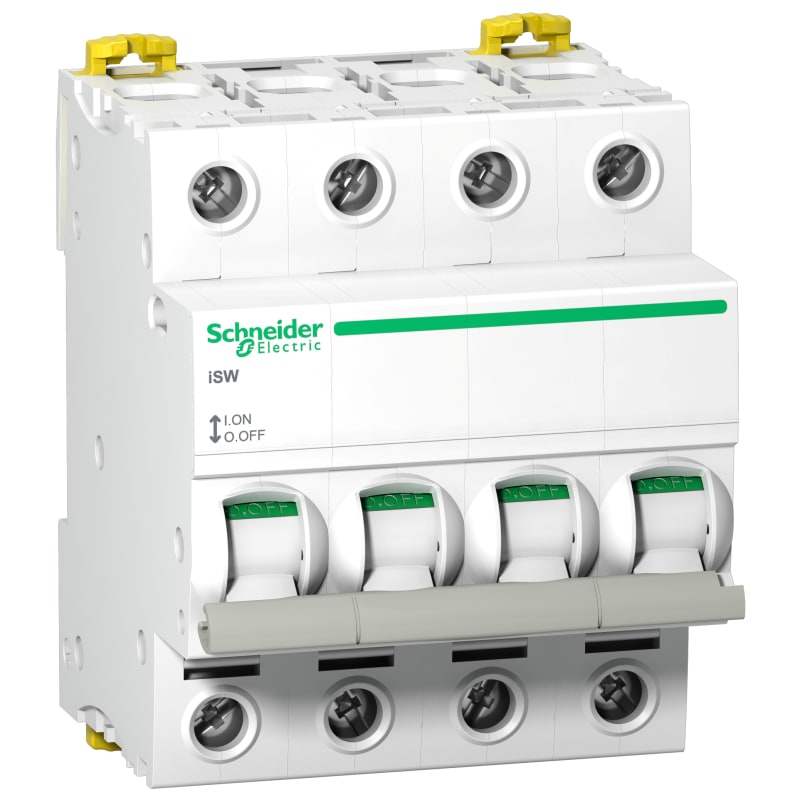

Schneider Electric switch disconnector iSW - 4P - 100 A - 415 V A9S65491

Schneider Electric A9S65491 Load-break switch iSW 4P 100A 415VAC.

Manufacturer part number (MPN)

A9S65491

EAN / GTIN

3606480531156

HS code

8536.90

Sales unit

pcs

Package quantity

3 pcs

Voltage

415 V AC

Rated current

100 A

Number of poles

4P

Range

Acti9

Product name

Acti9 iSW

Product or component type

Switch disconnector

Device short name

iSW

Device application

Control; Isolation

Poles description

4P

Utilisation category

AC-22A

Suitability for isolation

Yes

[Ie] rated operational current

100 A at 415 V AC 50/60 Hz

[Ue] rated operational voltage

415 V AC 50/60 Hz

[Icm] rated short-circuit making capacity

5 kA switch-disconnector alone

[Icw] rated short-time withstand current

1500 A

[Ui] rated insulation voltage

500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

Control type

Toggle

Local signalling

ON/OFF indication

Contact position indicator

Yes

mounting mode

Fixed

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top or bottom: YES

9 mm pitches

8

Height

85 mm

Width

72 mm

Depth

73 mm

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid; Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible; Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule

Wire stripping length

14 mm

Tightening torque

3.5 N.m

Standards

IEC 60947-3; EN 60947-3

IP degree of protection

IP20

Pollution degree

3

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Country of origin

HU

Warranty (in months)

18

HS Code

8536.90
