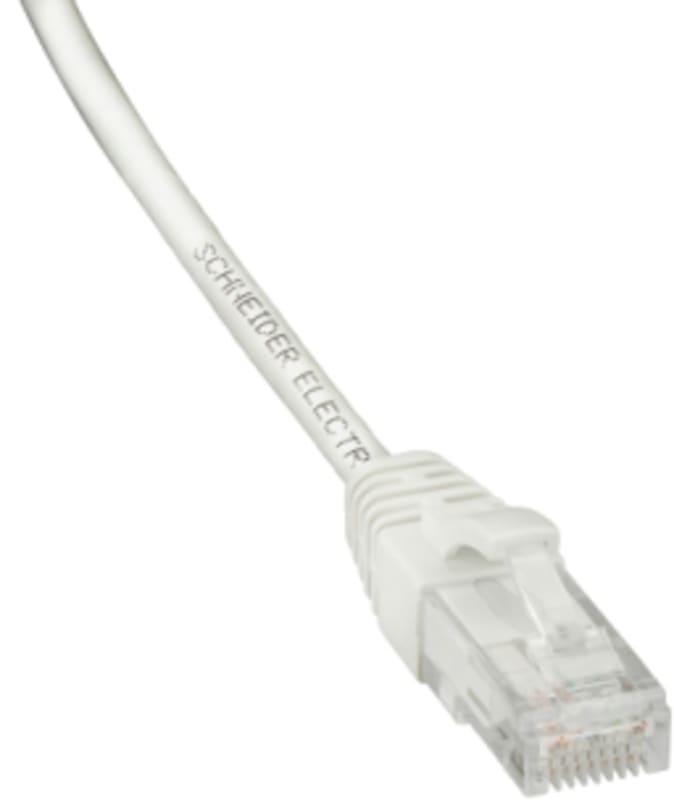

Schneider Electric Patch cord, Actassi, Category 6, U/UTP, LSZH, 2 m, white ACTPC6UULS20WE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6UULS20WE Actassi patch cord Cat 6 U/UTP AWG28 halogen-free LSZH, 2 meter, white.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6UULS20WE EAN / GTIN: 3606481052186 HS code: 8544.42 Sales unit: pcs Package quantity: 96 pcs range: Actassi product: Patch cord Device application: Communication Colour: White Cable shielding type: U/UTP Type of cable: 4 pair cables length (customizable value in configurator): 2 m Communication network category: 6 Transmission frequency: 250 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 24 in cabinet for 4PPoE Type 3 (up to 60 W); 12 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 3.8 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Number of Units in Package 1: 1 Number of Units in Package 2: 96 Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481052186
- SAP 1200537720
- Code 82699931
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Switch disconnector, ComPacT NSX160NA, 3 poles, fixed, thermal current Ith 160A C163160S
Schneider Electric
Pilot Light Head Green LED
ZB4BV033
Schneider Electric
Tegningsholder RAL9003-PRISMASET G/P
LVS08963
Schneider Electric
Schneider Electric TeSys GV3 Motor Circuit Breaker, 3P, 65 A, EverLink
GV3L65
Schneider Electric
Schneider Electric NSYS3D5520P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 500X500X200MM, IP66, IK10
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 3 poles, MicroLogic 2.2 trip unit 40A C10N32D040
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 24-32 A, thermal magnetic, screw clamp terminals GV2P32
Schneider Electric
Schneider Electric Miniature circuit-breaker, ACTI9 C120N, 3P, 100 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2) A9N18367
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ACTPC6UULS20WE?
- ACTPC6UULS20WE can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ACTPC6UULS20WE.
- What is the HS code for ACTPC6UULS20WE?
- The customs tariff (HS) code for ACTPC6UULS20WE is 8544.42.
- Who manufactures ACTPC6UULS20WE?
- ACTPC6UULS20WE is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for ACTPC6UULS20WE?
- Yes — the ACTPC6UULS20WE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ACTPC6UULS20WE?
- The minimum order quantity is 1.
- Is ACTPC6UULS20WE available?
- Yes — ACTPC6UULS20WE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
