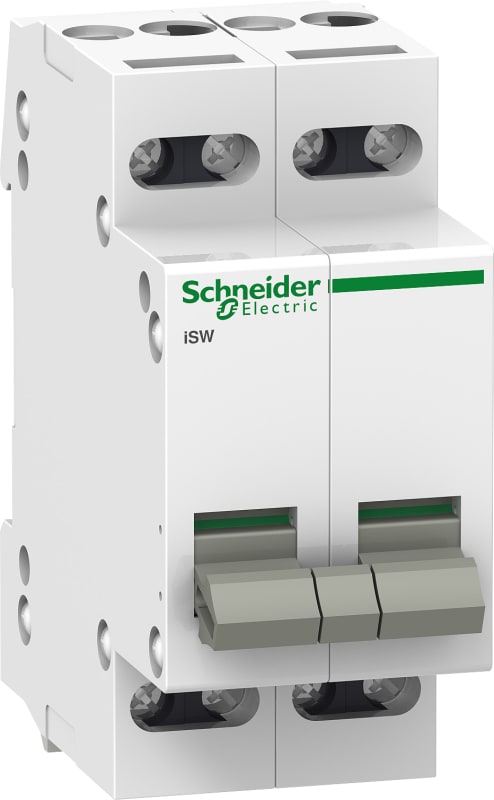

Schneider Electric switch ACTI9 iSW - 4 poles - 32 A - 415V A9S60432

Schneider Electric A9S60432 Load-break switch iSW 4P 32A 415V.

Manufacturer part number (MPN)

A9S60432

EAN / GTIN

3606480088742

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Voltage

415 V

Rated current

32 A

Number of poles

4P

Range

Acti9

Product name

Acti9 iSW

Product or component type

Switch disconnector

Device short name

iSW

Device application

Control

Poles description

4P

Utilisation category

AC-22A

Suitability for isolation

Yes

[Ie] rated operational current

32 A at 415 V AC 50/60 Hz

[Ue] rated operational voltage

415 V AC 50/60 Hz

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60669-2-4

[Uimp] rated impulse withstand voltage

4 kV

Control type

Toggle

Local signalling

ON/OFF indication

Contact position indicator

Yes

mounting mode

Fixed

Mounting support

DIN rail

9 mm pitches

4

Height

77 mm

Width

36 mm

Depth

70 mm

Colour

White

Mechanical durability

300000 cycles

Electrical durability

30000 cycles

Connections - terminals

Tunnel type terminals - 1 x 10 mm² - rigid; Tunnel type terminals - 1 x 10 mm² - flexible; Tunnel type terminals - 2 x 10 mm² - flexible with ferrule

Wire stripping length

9 mm

Tightening torque

1.2 N.m

Standards

EN/IEC 60669-2-4

IP degree of protection

IP4

Pollution degree

2

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Country of origin

BE

Warranty (in months)

18

HS Code

8536.90
