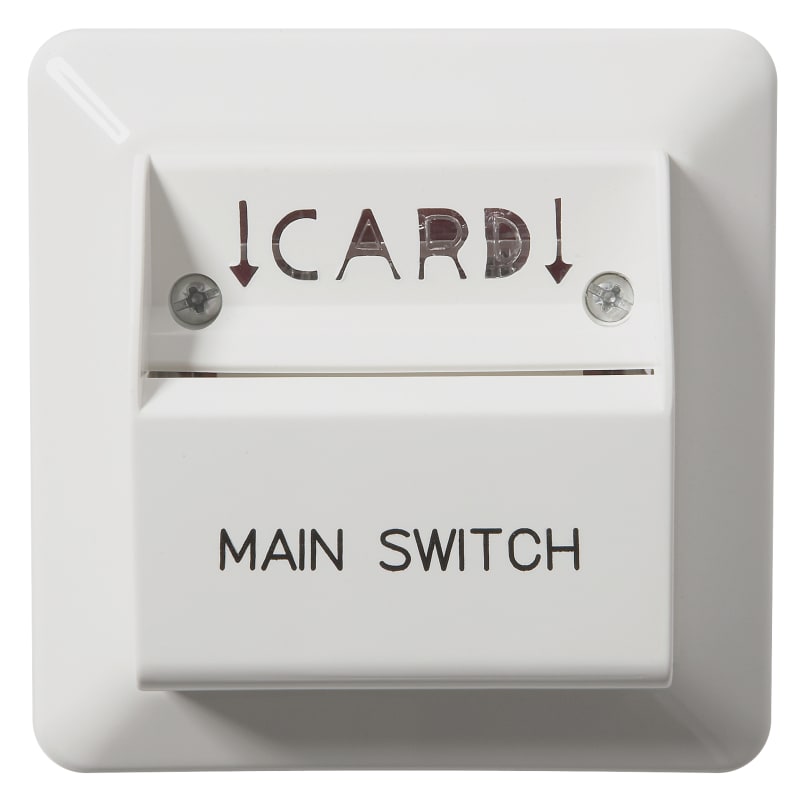

RS16/1/2/6 NK Polar WHITE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric EKO04448 RS Polar-white/1/2/6 NK POLAR WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- EKO04448
- EAN / GTIN
- 7020160444806
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Wiring system
- Two-way switch
- Method of operation
- Hotel card
- Assembly arrangement
- Basic element with full cover plate
- Number of modules (module system)
- 1
- Push button switch
- No
- Mounting method
- Flush-mounted
- Type of fastening
- Screw mounting
- With mounting plate
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9010
- Label space/information surface
- No
- Lighting
- Yes
- Function lighting
- Orientation
- Type of lighting
- Glow lamp
- Suitable for degree of protection (IP)
- IP21
- Impact strength
- Not available
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Switching current for fluorescent lamps
- 10 AX
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Heating switch
- No
- Washing machine switch
- No
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 29 mm
- Built-in depth
- 11.5 mm
- Min. depth of built-in installation box
- 17 mm
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160444806
- SAP 1200173506
- Code 82100077
Product Documentation
