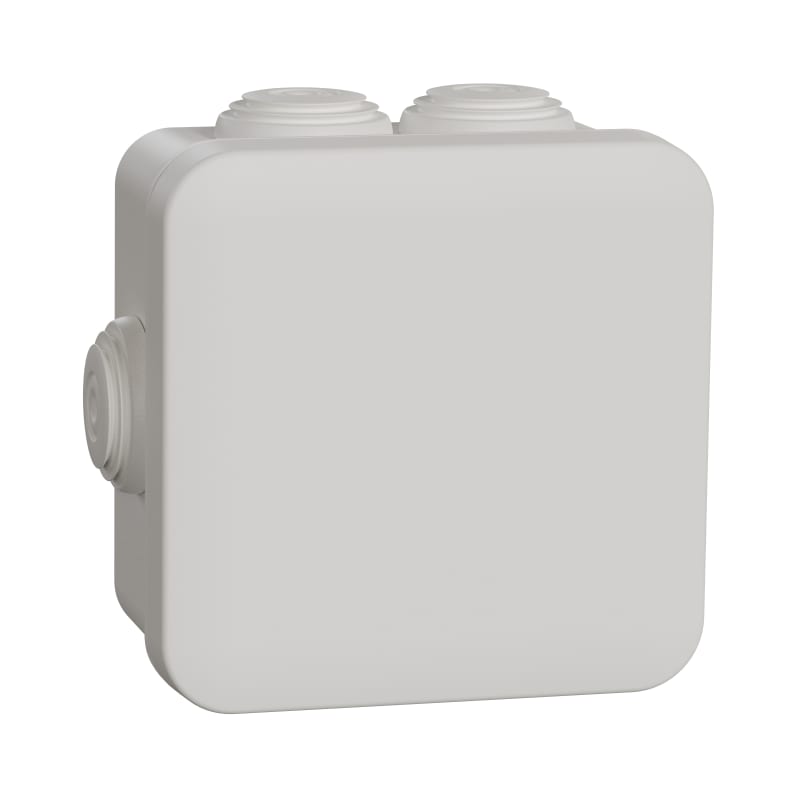

Connection Box 80X80X45 White
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT05024 Mureva Box - boite de dérivation avec embouts - 80x80x45 - IP55 - blanc polaire.
Technical Specifications
- Manufacturer part number (MPN)
- IMT05024
- EAN / GTIN
- 3606480986369
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Dimensions
- 80×80×45
- range of product
- Mureva
- Product name
- Mureva BOX
- Product or component type
- Junction box
- Device application
- Cable installation
- Colour tint
- White (RAL 9003)
- Quantity per set
- Set of 5
- Device mounting
- Surface
- Fixing mode
- By screw: body housing
- Base dimension
- 80 x 45 x 80 mm
- cable entry
- Grommets
- Cable entry number
- 7 diameter: 20 mm
- Material
- ABS (acrylonitrile butadiene-styrene): body; PP (polypropylene): cover
- Height
- 80 mm
- Width
- 80 mm
- Depth
- 45 mm
- Ambient air temperature for operation
- -25…60 °C
- IP degree of protection
- IP55
- IK degree of protection
- IK07
- Glow wire temp
- 650 °C
- Standards
- EN 60670; CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 100
- Warranty (in months)
- 18
- Model
- Junction box
- RAL-number (similar)
- 9003
- Max. conductor cross section
- 20 mm²
- Shape
- Square
- Mounting method
- Wall-/ceiling mounting
- Mounting in the soil
- No
- Mounting under water
- No
- For tube diameter
- 20 mm
- Inlet from the rear
- No
- Length
- 80 mm
- Connectable
- Yes
- Number of inlets
- 7
- Type of housing feed-through
- Pipe socket
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- White
- Degree of protection (IP)
- IP55
- Cover model
- Blind cover
- Transparent cover
- No
- Cover attachment
- Screwed
- Castable
- No
- Casting compound included
- No
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- No
- Operating temperature
- -25–60 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480986369
- SAP 1200058131
- Code 81899943
Product Documentation
