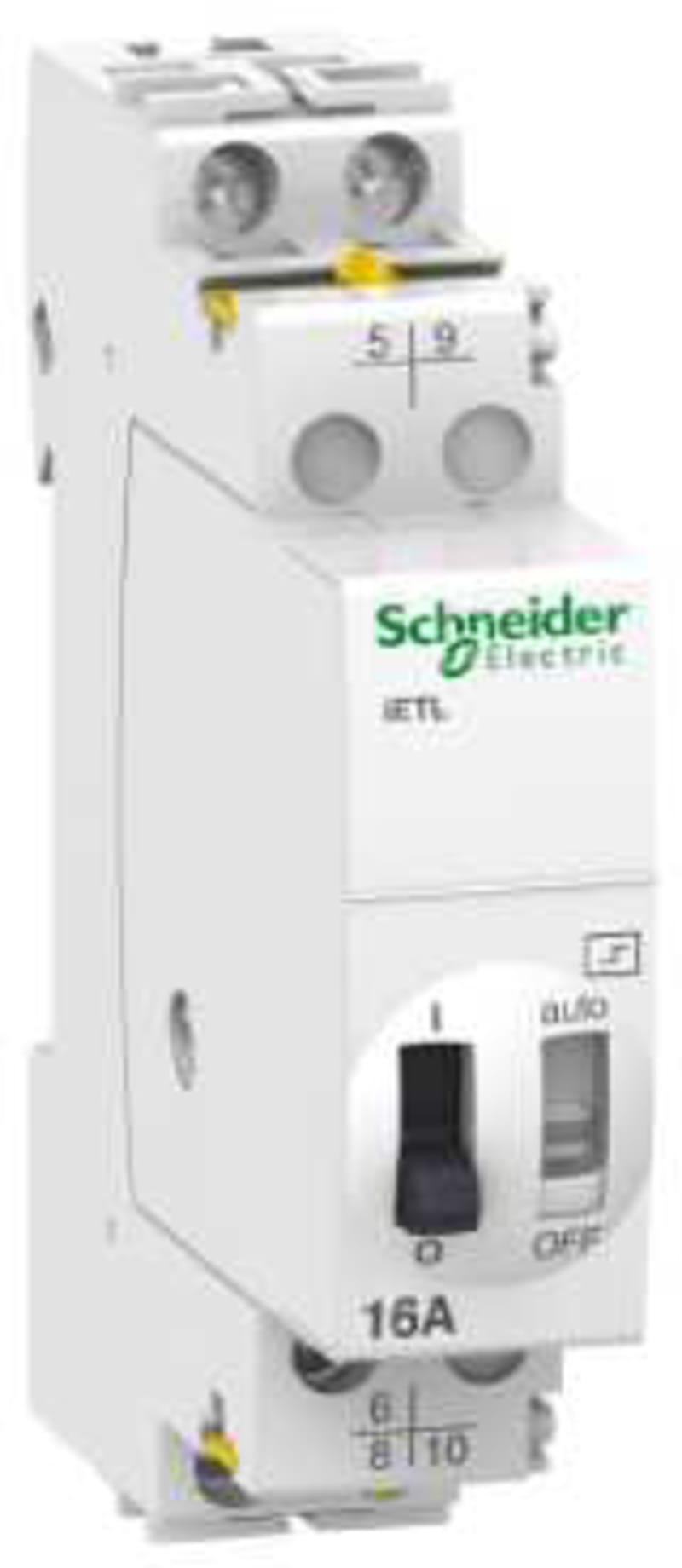

Schneider Electric extension iETL iTL 16- 2P - 1C/O+1NO -16A - coil 110VDC - 230...240V AC 50/60Hz A9C32816
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9C32816 Tilleggsblokk iETL 16A 2NO 230AC/110DC.
Technical Specifications
- Manufacturer part number (MPN)
- A9C32816
- EAN / GTIN
- 3606480091926
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Contact configuration
- 2 NO
- range of product
- Acti9
- Product or component type
- Extension for impulse relay
- Device short name
- iETL iTL 16
- Relay application
- Remote control
- Poles description
- 2P
- Pole contact composition
- 1 C/O + 1 NO
- [In] rated current
- 16 A
- Network type
- AC
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 415 V AC 50/60 Hz
- Control type
- Toggle; Remote control
- Control signal type
- Impulse
- Switching frequency
- 5 switching operations/minute
- Impulse duration
- 50 ms
- Remote control type
- Illuminated push-button 3 mA
- Local signalling
- ON/OFF indication
- [Uc] control circuit voltage
- 230...240 V AC 50/60 Hz; 110 V DC
- Supply inrush power
- 19 VA
- mounting mode
- Fixed, on right side of TL
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 2
- Height
- 60 mm
- Width
- 18 mm
- Depth
- 84 mm
- Colour
- White
- Electrical durability
- AC-21: 200000 cycles; AC-22: 100000 cycles
- Connections - terminals
- Tunnel type terminals - <= 6 mm²
- Auxiliary connection terminal
- Tunnel type terminals control circuit in 0.5…6 mm²
- Range compatibility
- Acti9 iTL; Acti9 iTLi
- Product compatibility
- ITL 16A
- Standards
- EN 669-1; EN 669-2-2
- Product certifications
- GOST
- Quality labels
- NF; VDE; CEBEC; KEMA; IMQ
- Noise level
- 60 dB
- IP degree of protection
- IP20 conforming to IEC 60529
- Pollution degree
- 3
- Tropicalisation
- 2 conforming to IEC 60068-1
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -40…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 72
- Country of origin
- BE
- Warranty (in months)
- 18
- Function
- Mechanical
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in depth
- 84 mm
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Control voltage 1
- 230–240 V
- Type of control voltage 1
- AC
- Frequency control voltage 1
- 50–60 Hz
- Control voltage 2
- 110 V
- Type of control voltage 2
- DC
- Rated current
- 16 A
- Supply voltage
- 24–250 V
- Voltage type (supply voltage)
- AC
- Max. incandescent lamp load
- 1600 W
- Max. load fluorescent lamp
- 1300 VA
- Max. switching current (cos phi = 0.6)
- 16 A
