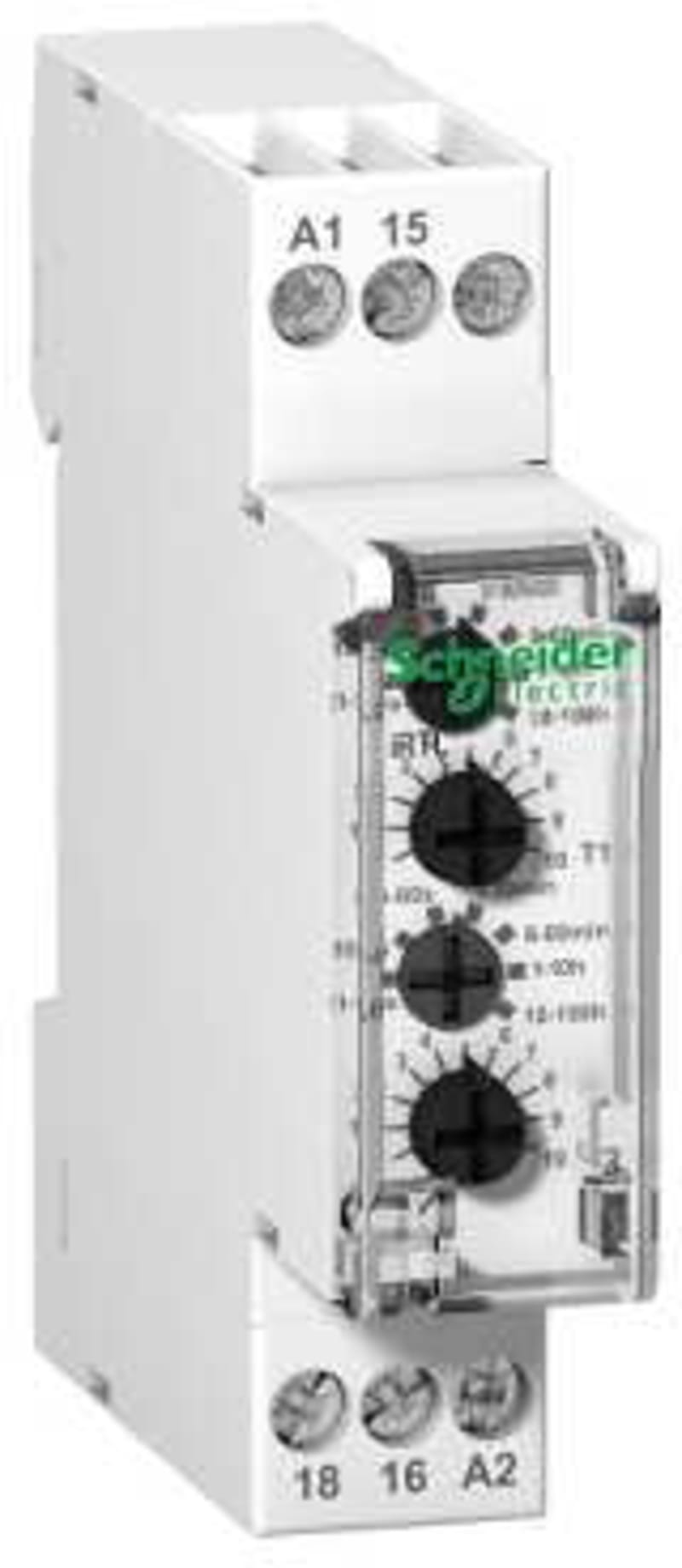

Schneider Electric blinking relay iRTL - 1C/O - Uc 24-240 VAC/24VDC A9E16069

Schneider Electric A9E16069 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Tidsrelè iRTL blinkrelè.

Manufacturer part number (MPN)

A9E16069

EAN / GTIN

3606480377457

Sales unit

pcs

Package quantity

12 pcs

Relay application

Time delay relay

Time delay type

Blinker

Range

Acti9

Product name

IRT

Device short name

iRTL

Signal contacts composition

1 C/O

[Ie] rated operational current

8 A at 250 V AC; 8 A at 250 V DC; 0.01 A at 5 V DC

Impulse duration

> 100 ms

Local signalling

LED, flashing for time delay

Type of setting

Rotary knob: time delay configuration

Time delay range

0.1...360000 s

Accuracy error

+/- 10 %

Repeat accuracy

+/- 0.5 %

[Uc] control circuit voltage

24...240 V AC 50/60 Hz; 24 V DC

[Us] rated supply voltage

24...240 V AC at 50/60 Hz; 24 V DC

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

2

Height

93 mm

Width

18 mm

Depth

72 mm

Product weight

0.065 kg

Colour

White

Mechanical durability

5000000 cycles

Electrical durability

AC-1: 100000 cycles

Undervoltage behaviour

100 ms

Connections - terminals

Tunnel type terminals for 2 cable(s) 1.5 mm² flexible with cable end; Tunnel type terminals for 2 cable(s) 1.5 mm² flexible without cable end; Tunnel type terminals for 2 cable(s) 2.5 mm² rigid with cable end; Tunnel type terminals for 2 cable(s) 2.5 mm² rigid without cable end

IP degree of protection

IP20

Immunity to microbreaks

20 ms

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.2 cm

Package 1 Width

7.4 cm

Package 1 Length

10.2 cm

Package 1 Weight

80 g

Unit Type of Package 2

S02

Number of Units in Package 2

40

Package 2 Height

15 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

3.625 kg

Country of origin

ID

Warranty (in months)

18

Type of excitation

Analogue with multi function

Function

Multi function

1st interval unit

Seconds/hours

1st interval

0.1–100

2nd interval unit

Seconds/hours

2nd interval

0.1–100

Mounting method

DIN rail

Width in number of modular spacings

1

Built-in height

81 mm

Number of changeover switches

1

Control voltage 1

24–240 V

Type of control voltage 1

AC

Frequency control voltage 1

50–60 Hz

Control voltage 2

24 V

Type of control voltage 2

DC

Supply voltage

24–240 V

Voltage type (supply voltage)

AC

Nominal switching current at 250 V AC

8 A

HS Code

8536.49

• EAN 3606480377457
• SAP 1000326974
• Code 81164881
