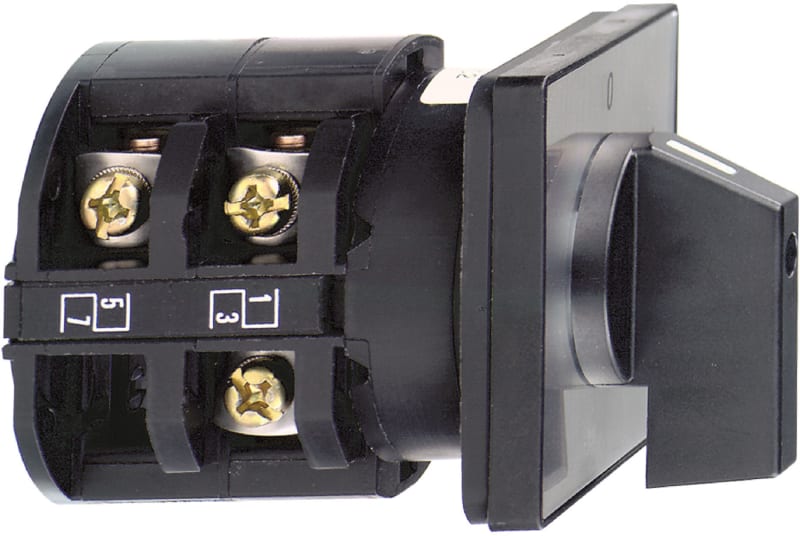

Schneider Electric cam switch - 4-Pole - 90° - 63 A - screw mounting K63D004HP

Schneider Electric K63D004HP Cam Switch Of/On 4-pole 90º.

Manufacturer part number (MPN)

K63D004HP

EAN / GTIN

3389110080063

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Number of poles

4P

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K63

[Ith] conventional free air thermal current

63 A

Product mounting

Front mounting

fixing mode

4 holes

Cam switch head type

With front plate 64 x 64 mm

Type of operator

Black handle

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, OFF-ON black marking

Cam switch function

Switch

Return

Without

Off position

With Off position

Poles description

4P

Switching positions

Right: 0° - 90°

IP degree of protection

IP40 conforming to IEC 60529

Switching angle

90 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

Short-circuit current

10000 A

Short-circuit protection

80 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

6 kV conforming to EN 947-1; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 10 mm²; Captive screw clamp terminals solid, clamping capacity: 2 x 16 mm²

Tightening torque

2.5 N.m

Switching capacity in mA

20000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms); 20000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms); 20000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms); 30000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms); 30000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms); 30000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms); 55000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms); 55000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms); 55000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms); 63000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms); 63000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms); 63000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms); 63000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms); 63000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms); 63000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms); 63000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms); 63000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms); 63000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms)

Mechanical durability

300000 cycles

CAD overall width

64 mm

CAD overall height

64 mm

CAD overall depth

111 mm

Product weight

0.39 kg

Standards

IEC 60947-3

Product certifications

CULus 120 V 3 hp 1 phase; CULus 480 V 25 hp 3 phases; CULus 240 V 7.5 hp 1 phase; CULus 240 V 10 hp 3 phases

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536; Class II conforming to NF C 20-030

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110080063
• SAP 1000252957
