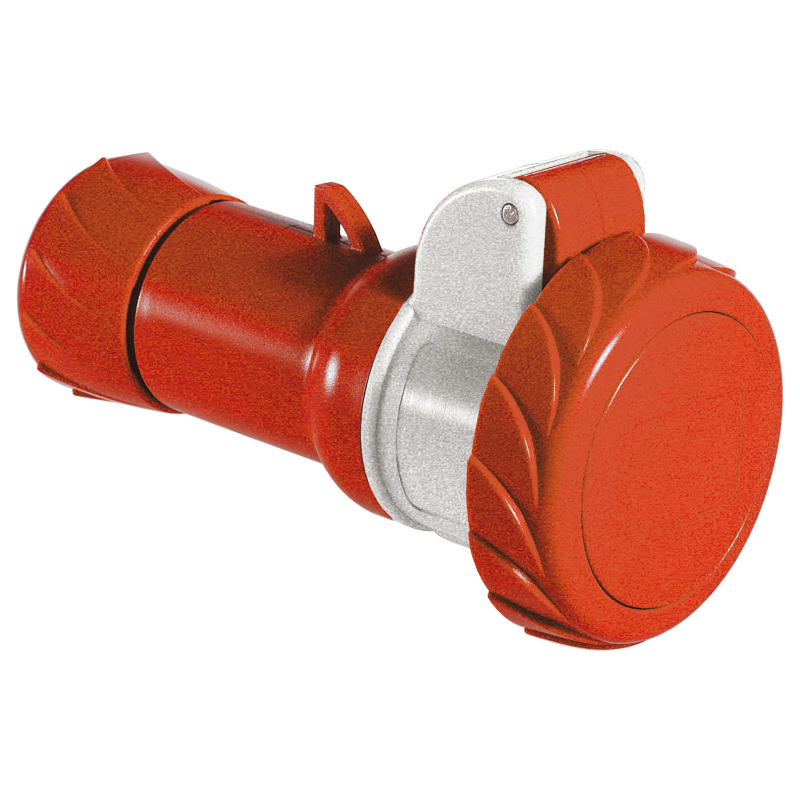

Schneider Electric Wander socket outlet, Mureva PK, 32A, 3P+E, 400V, IP67 PKF32M734

Schneider Electric PKF32M734 PratiKa coupler socket - straight - 32 A - 3P + E - 380.415 V AC - IP67.

Manufacturer part number (MPN)

PKF32M734

EAN / GTIN

3303432032883

Sales unit

pcs

Package quantity

6 pcs

Voltage

400 V

IP rating

IP67

Rated current

32 A

Range

Mureva

Product or component type

Wander socket

Device short name

Mureva screw

Plug, socket category

Low voltage

Poles description

3P + E

Network type

AC

Outlet standard

Industrial

Plug, socket, control station shape

Straight

[In] rated current

32 A

[Ue] rated operational voltage

380...415 V

Network frequency

50/60 Hz

Ground lug clockwise position

6 h

Plug, socket material

Housing: self-extinguishing engineering polymer

Contacts material

Sleeves: brass

Connections - terminals

Captive screws

Cable cross section

2.5…10 mm²

Cable outer diameter

11.5…21 mm

cable entry

Cable gland

Thread type

Pg 21

Product weight

0.3 kg

Height

99 mm

Width

99 mm

Depth

164 mm

Colour

Grey (RAL 7035)

Voltage colour

Red

Standards

IEC 60309-1; IEC 60309-2

IP degree of protection

IP67 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 62262

Fire resistance

850 °C conforming to IEC 60695-2-1

Relative humidity

50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C

Ambient air temperature for operation

35 °C ( 86400 s ) ; -25…40 °C

Warranty (in months)

18

IEC-amperage

32 A

Number of poles

4

Voltage according to EN 60309-2

380-415 V (50+60 Hz) red

Clock hour position

6 h

Identification colour

Red

RAL-number

7035

Degree of protection (IP)

IP67

Connection system

Screwed terminal

Insert direction

Straight

Material

Plastic

Military model

No

Country of origin

Italy

HS Code

8536.69
