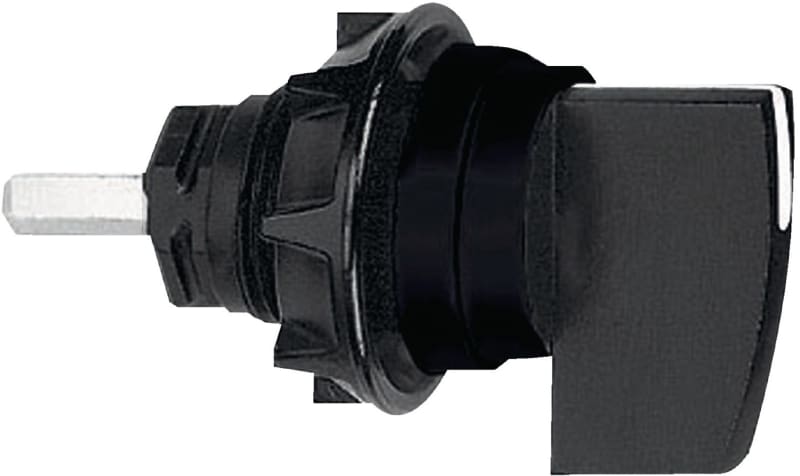

Schneider Electric KAA1H operating head for cam switch - Ø 29 mm - black handle

Schneider Electric KAA1H operating head for cam switch - Ø 29 mm - black handle is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 60 pcs; Range of product: Harmony Series K; Product or component type: Cam switch operating head; Component name: KAA; Cam switch head type: With bezel Ø 29 mm, plastic with metallic finish.

Manufacturer part number (MPN)

KAA1H

EAN / GTIN

3389110980721

Sales unit

pcs

Package quantity

60 pcs

Range of product

Harmony Series K

Product or component type

Cam switch operating head

Component name

KAA

Product compatibility

Front mounting bodies 12 and 20 A by Ø 22 mm hole

Cam switch head type

With bezel Ø 29 mm, plastic with metallic finish

Type of operator

Black handle, length = 35 mm

Rotary handle padlocking

Without

Presentation of legend

With matt black legend

Mechanical durability

1000000 cycles

CAD overall width

29 mm

CAD overall height

38 mm

CAD overall depth

77 mm

Length

35 mm

Product weight

0.042 kg

Compatibility code

KAA

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

IP degree of protection

IP65 conforming to IEC 529; IP65 conforming to NF C 20-010

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.500 cm

Package 1 Width

9.000 cm

Package 1 Length

5.500 cm

Package 1 Weight

47.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

60

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.165 kg

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Long rotary handle

Colour control element

Black

Switching function latching

Yes

HS Code

8531.90
