Transp. Front plate 6M Cable Compartment Prisma G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

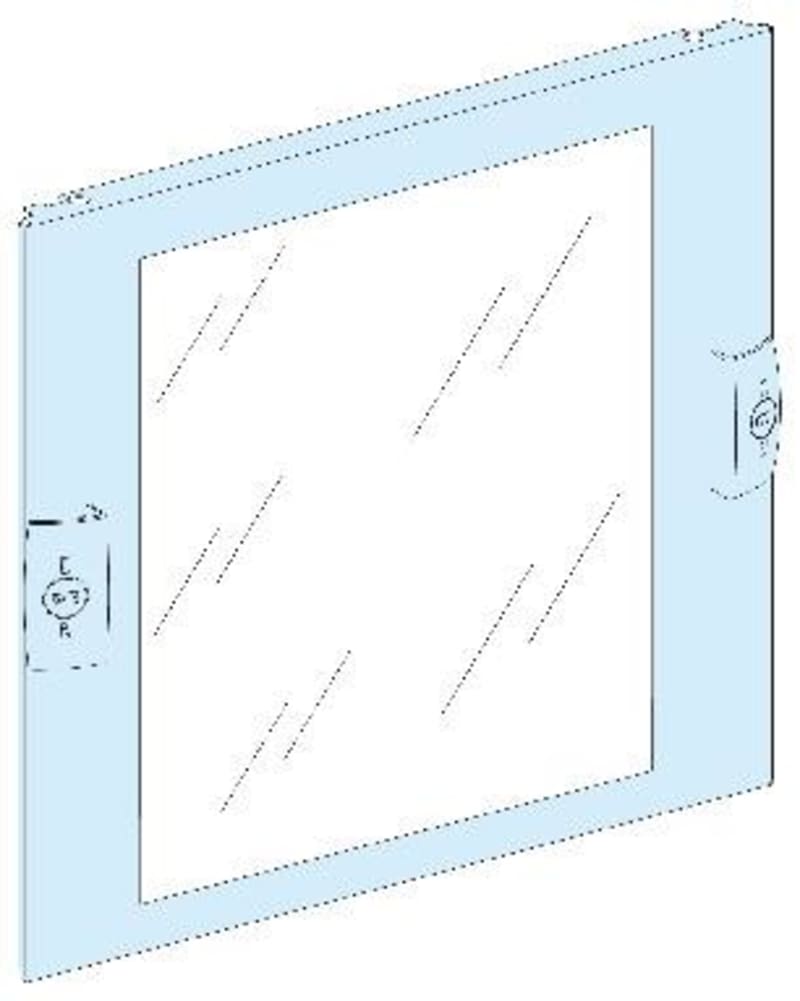

Schneider Electric LVS03353 — TRANSPARENT FRONT PLATE W300 6M.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03353
- EAN / GTIN
- 3606481871718
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT P duct
- Type of front plate
- Transparent
- Installed device
- TeSys: fixed GV3Pxx1 + LC1D40 to D65 - horizontal installation
- Poles description
- 3 x 3P: modular rail support: GV3Pxx1 + LC1D40 to D65 horizontal installation
- Enclosure/cubicle description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle duct - width 400 mm depth 400 mm
- Number of vertical modules [50 mm]
- 6
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Glass
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 300 mm
- Product weight
- 0.76 kg
- Quantity per set
- Set of 1
- functional unit
- 400 mm 400 mm PrismaSeT P cubicle; 300 mm PrismaSeT G floor-standing duct TeSys GV3Pxx1 + LC1D40 to D65 fixed horizontal 3P 3 direct 7; 300 mm PrismaSeT G wall-mounted duct TeSys GV3Pxx1 + LC1D40 to D65 fixed horizontal 3P 3 direct 7
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.0 cm
- Package 1 Width
- 26.5 cm
- Package 1 Length
- 31.0 cm
- Package 1 Weight
- 901.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 8
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 7.909 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 300 mm
- Number of height units
- 6
- Surface finishing
- Untreated
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606481871718
- SAP 1200546661
- Code 82879583
