Schneider Electric ABS box IP66 IK07 RAL7035 INT.H150W105D80 EXT.H164W121D87 Opaque cover H20 NSYTBS16128
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS16128 85007 Abs Box 164X121X87 T.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS16128
- EAN / GTIN
- 3606480165276
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Dimensions
- 164×121×87
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 164 mm
- Width
- 121 mm
- Depth
- 87 mm
- Internal height
- 150 mm
- Internal width
- 105 mm
- Internal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Quantity per set
- Set of 2
- Body type
- One piece moulded
- Type of front cover
- Low plain cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 0.32 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Number of Units in Package 3
- 32
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480165276
- SAP 1000090235
- Code 8893593
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NC aux. - 24 V DC coil LP1K0601BD
Schneider Electric
KONTROLLER,Ø22 MM,Metal (XD2PA22)
Schneider Electric
Schneider Electric OptiLine 12×30 mm end piece PC/ABS pure white
ISM14204P
Schneider Electric
Schneider Electric Metal industrial box plain door H200XW300XD80 IP66 IK10 RAL 7035 NSYSBM20308
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, plain lens, 1NO + 1NC, 230...240V AC XB4BW36M5
Schneider Electric

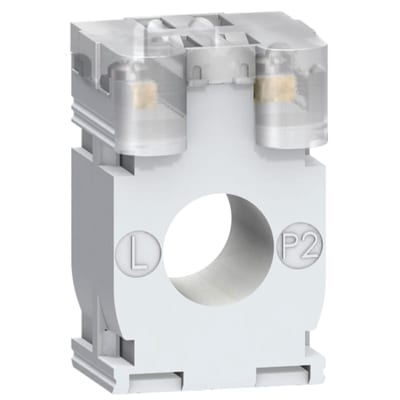

Current Transformer 100/5 Cable Ø21
METSECT5CC010
Schneider Electric

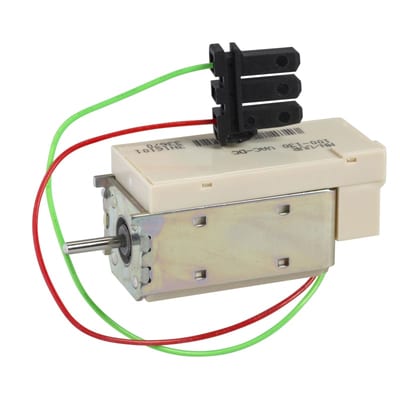

MN 024/030V AC/DC for Fast Bry
33668
Schneider Electric

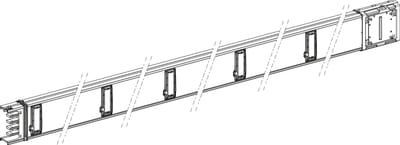

Schneider Electric KSA250ED45010 STRAIGHT DISTRIBUTION LENGTH 5M 250 A
