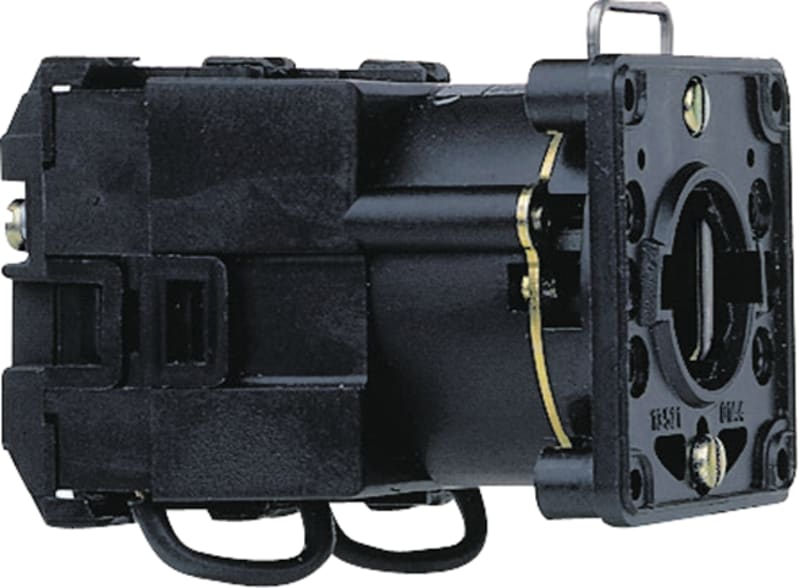

CAM Switch,Selector Switch (K2F003U)

Schneider Electric K2F003U Cam Switch Selector switch 2 POS + 0.

Manufacturer part number (MPN)

K2F003U

EAN / GTIN

3389110478099

Sales unit

pcs

Package quantity

16 pcs

Range of product

Harmony K

Product or component type

Cam switch body

Component name

K2

[Ith] conventional free air thermal current

20 A

Sub-assembly composition

Contact blocks + fixing plate

Cam switch function

Changeover switch

Off position

With Off position

Poles description

3P

Switching positions

Right: 0° - 45°; Left: 0° - 315°

Mounting location

Front

fixing mode

Ø 22 mm hole

Bezel material

Plastic

Switching angle

45 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

[Ithe] conventional enclosed thermal current

16 A

Rated operational power in W

1300 W AC-3, 230 V 1 phase conforming to IEC 947-3; 14000 W AC-21, 400 V 3 phases conforming to IEC 947-3; 17000 W AC-21, 550...600 V 3 phases conforming to IEC 947-3; 2200 W AC-3, 230 V 3 phases conforming to IEC 947-3; 2200 W AC-3, 400 V 1 phase conforming to IEC 947-3; 4000 W AC-23A, 230 V 3 phases conforming to IEC 947-3; 4000 W AC-3, 400 V 3 phases conforming to IEC 947-3; 4000 W AC-3, 500 V 3 phases conforming to IEC 947-3; 4000 W AC-3, 690 V 3 phases conforming to IEC 947-3; 5500 W AC-23A, 400 V 3 phases conforming to IEC 947-3; 5500 W AC-23A, 500 V 3 phases conforming to IEC 947-3; 5500 W AC-23A, 690 V 3 phases conforming to IEC 947-3; 8000 W AC-21, 230 V 3 phases conforming to IEC 947-3

[Ie] rated operational current AC

8 A at 400 V AC-3 3 phases conforming to IEC 947-3; 10.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3; 14.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3; 4.7 A at 690 V AC-3 3 phases conforming to IEC 947-3; 6.4 A at 690 V AC-23A 3 phases conforming to IEC 947-3; 6.5 A at 500 V AC-3 3 phases conforming to IEC 947-3; 8.3 A at 230 V AC-3 3 phases conforming to IEC 947-3; 8.9 A at 500 V AC-23A 3 phases conforming to IEC 947-3; 2 A at 500 V AC-15 conforming to IEC 947-5-1; 3 A at 400 V AC-15 conforming to IEC 947-5-1; 4 A at 230 V AC-15 conforming to IEC 947-5-1

Electrical durability

200000 cycles AC-23; 200000 cycles AC-3; 600000 cycles AC-15; 600000 cycles AC-21

Maximum operating rate

2.5 cyc/mn AC-21; 2.5 cyc/mn AC-23; 2.5 cyc/mn AC-3; 8.333 cyc/mn AC-15

Short-circuit current

10000 A

Short-circuit protection

20 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV in isolating function; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²; Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²

Mechanical durability

1000000 cycles

Product weight

0.14 kg

Standards

IEC 60947-3 for power circuit; IEC 60947-5-1 for control circuit; CENELEC EN 50013

Product certifications

CSA 240 V 1 hp 1 phase; CSA 240 V 3 hp 3 phases 2 -pole(s); UL 240 V 1 hp 3 phases; UL 240 V 0.33 hp 1 phase 2 -pole(s)

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

Overvoltage category

Class II conforming to IEC 536; Class II conforming to NF C 20-030

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

6.500 cm

Package 1 Length

8.000 cm

Package 1 Weight

142.000 g

Unit Type of Package 2

S01

Number of Units in Package 2

16

Package 2 Height

15.000 cm

Package 2 Width

15.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

2.472 kg

Unit Type of Package 3

P06

Number of Units in Package 3

512

Package 3 Height

75.000 cm

Package 3 Width

80.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

87.104 kg

Country of origin

CZ

Warranty (in months)

18

Model

Reverser

Rated operation power at AC-3, 400 V

4 kW

Rated permanent current Iu

20 A

Number of poles

3

Rated operation current Ie at AC-3, 400 V

8 A

With zero (off) position

Yes

Housing material

Plastic

With retraction in 0-position

No

Type of electrical connection of main circuit

Screw connection

Suitable for floor mounting

No

Suitable for front mounting

Yes

Suitable for distribution board installation

No

Suitable for intermediate mounting

Yes

Complete device in housing

No

HS Code

8536.50
