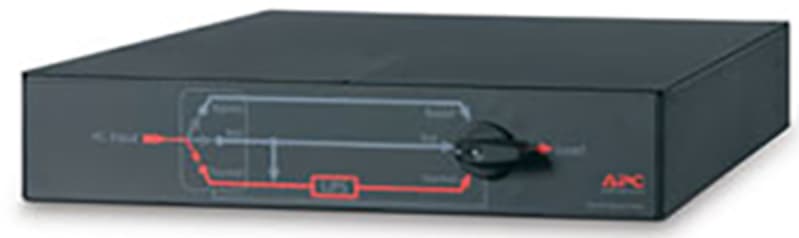

Schneider Electric APC Service Bypass Panel- 100-240V; 30A; BBM; Hardwire Input/Output SBP3000
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SBP3000 APC/Easy bypasspanel - 30A, 230V, Rack 2U, for 3kVA, in: 1P+N+J, out: 1P+N+J.
Technical Specifications
- Manufacturer part number (MPN)
- SBP3000
- EAN / GTIN
- 0731304212713
- Sales unit
- pcs
- Voltage
- 230 V
- Main Input Voltage
- 100 V; 120 V; 230 V
- Product or component type
- Bypass kit
- Main Output Voltage
- 100 V; 120 V; 230 V
- Other Output Voltage
- 110 V
- Output connector type
- Hard wire 3-wire (H N + E) for 1 zone(s)
- Number of rack unit
- 2U
- Provided equipment
- Installation guide; Rack mounting brackets; User manual
- Range of product
- Maintenance Bypass Panels
- Colour
- Black
- Height
- 89 mm
- Width
- 432 mm
- Depth
- 635 mm
- Product weight
- 12 kg
- Mounting support
- Wall
- Mounting preference
- No preference
- mounting mode
- Rack-mounted with kit
- Network frequency
- 50/60 Hz
- Number of input connectors
- 1 hard wire 3-wire (H N + E)
- Max line current
- 30 A
- Input current limits
- 30 A
- Power factor
- 0…1
- Max current draw
- 30 A
- Protection type
- Circuit breaker
- Efficiency
- 99 %
- Product certifications
- CSA; GOST; VDE
- Standards
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- -20…50 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient air temperature for storage
- -40…65 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…15240 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 20.000 cm
- Package 1 Width
- 60.000 cm
- Package 1 Length
- 97.000 cm
- Package 1 Weight
- 17.446 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 4
- Package 2 Height
- 45.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 81.784 kg
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304212713
- SAP 1000577581
- Code 8690040
Product Documentation
