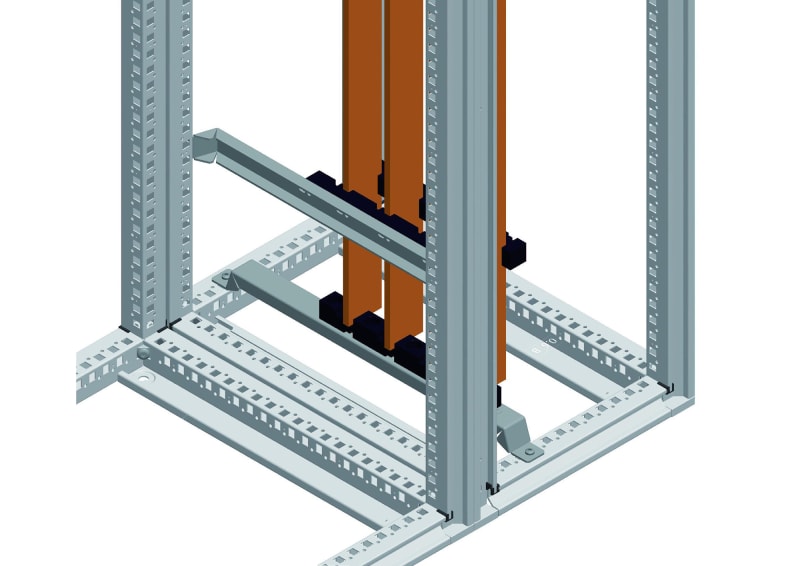

Perforated flat rail-LGY BS-Vertical 80X10MM

Schneider Electric LVS04528 Perforated flat rail-LGY BS-for Vertical mounting in side or rear-80x10mm length1675mm- PrismaSeT P.

Manufacturer part number (MPN)

LVS04528

EAN / GTIN

3606481870469

Sales unit

pcs

Dimensions

80x10 mm

Range

Linergy

Range of product

Linergy

Product or component type

Busbar

Product name

Linergy BS

Range compatibility

PrismaSeT PrismaSeT P enclosure

Busbar description

Flat bar

Quantity per set

Set of 1

Installation direction

Vertical, operating position: rear; Vertical, operating position: lateral

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm

[Ie] rated operational current

1800 A at 35 °C

[Icw] rated short-time withstand current

25 kA (1 s) for 3 supports; 50 kA (1 s) for 5 supports; 65 kA (1 s) for 7 supports; 75 kA (1 s) for 9 supports

Permissible current

1800 A at 35 °C: <= IP31; 1600 A at 35 °C: IP31

Busbar cross section

80 x 10 mm

Length

1675 mm

Width

80 mm

Depth

10 mm

Product weight

11.22 kg

Colour

Natural

Type of busbar connection

Ø 10 mm drilled hole

Connection pitch

Connection each 25 mm

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.800 cm

Package 1 Width

14.000 cm

Package 1 Length

180.000 cm

Package 1 Weight

11.202 kg

Unit Type of Package 2

P2M

Number of Units in Package 2

40

Package 2 Height

45.000 cm

Package 2 Width

120.000 cm

Package 2 Length

200.000 cm

Package 2 Weight

473.000 kg

Country of origin

SK

Warranty (in months)

18

Model

Flat

Height

10 mm

Flexible

No

Surface protection

Untreated

Rated current In

1800 A

HS Code

7407.29

• EAN 3606481870469
• SAP 1200546967
• Code 82880251
