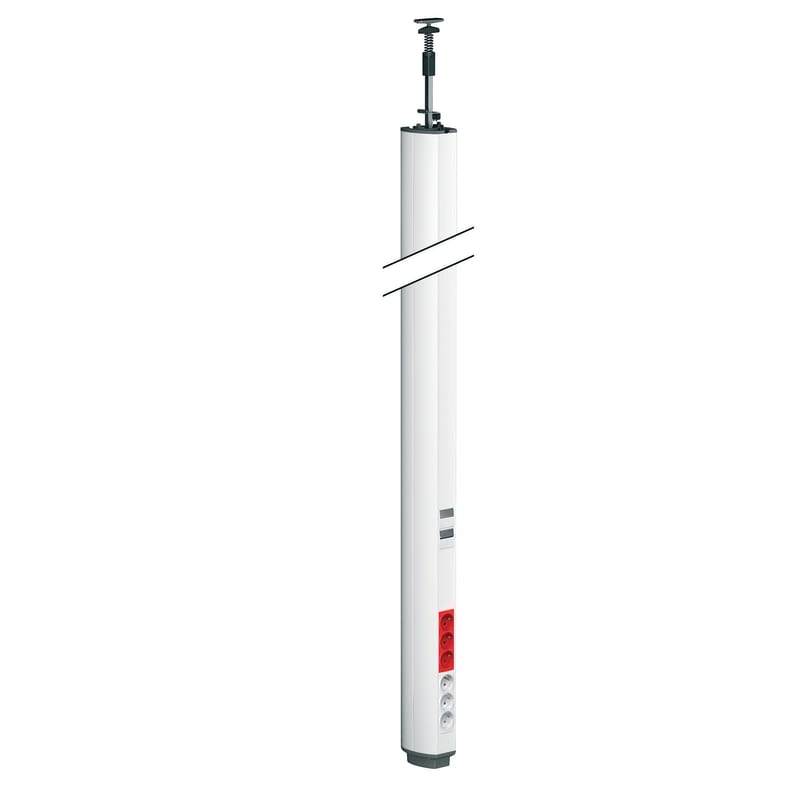

Schneider Electric Pole, OptiLine 45, tension-mounted, two-sided, 2700-3100 mm, polar white ISM20107P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM20107P OptiLine 45 Service Pole double-sided Innspent 2,7-3,1 m Polar White.
Technical Specifications
- Manufacturer part number (MPN)
- ISM20107P
- EAN / GTIN
- 3606480682001
- Sales unit
- pcs
- Range
- OptiLine
- Product name
- OptiLine 45
- Cabling installation system
- Pole
- Product type
- Pole
- Type of pole
- Two-sided
- Pole/post surface finish
- Powder coated
- Pole fixing mode
- Tension-mounted
- Colour tint
- Polar white (RAL 9003)
- Additional information
- Adjustability of ceiling fixing 400 mm
- Front opening size
- 45 mm
- Quantity package 1 / unit
- Set of 1
- Height
- 2700…3100 mm
- Depth
- 90 mm
- Width
- 116 mm
- Material
- Aluminium
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 60598-2-2; IEC 1084-2-4; NF C 68-102; SS 424 10 32
- Operating temperature
- -25…60 °C
- IP degree of protection
- IP40
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Pillar shape
- Oval
- Model
- Double-sided
- Pre-wired
- No
- Adjustable
- Yes
- Height levelling
- 400 mm
- Column depth
- 116 mm
- Column width
- 90 mm
- Number of usable covers
- 2
- Cover width
- 45 mm
- Place variable
- No
- Ceiling mounting
- Yes
- Cable entry
- Top/bottom
- Through-going profile
- Yes
- Material installation column
- Aluminium
- Material installation column halogen free
- Yes
- Surface protection column
- Coated
- Colour column
- White
- RAL-number column
- 9003
- Material cover
- Aluminium
- Material cover halogen free
- Yes
- Cover surface
- Coated
- Colour top cover
- White
- RAL-number cover
- 9003
- Number of partitions
- 2
- Usable cross section
- 7494 mm²
- Suitable for ceiling mounting
- Yes
- Suitable for floor mounting
- Yes
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606480682001
- SAP 1200557548
- Code 82906365
Product Documentation
