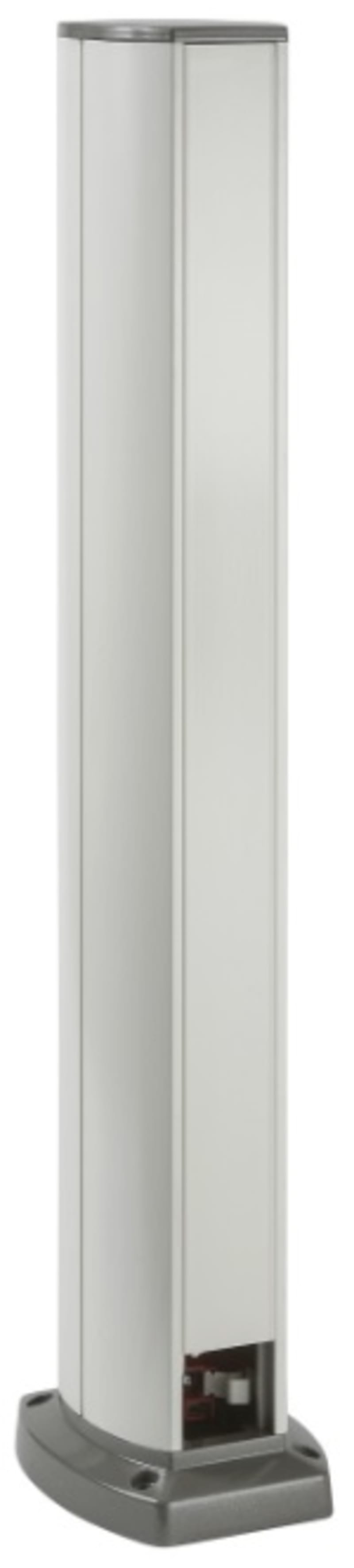

Schneider Electric OptiLine 45 Two-Sided Service Post, 700 mm, Polar White
Pricing
Request a quote
We reply within 24 hours
Product Description
Empty floor-to-ceiling service post from the OptiLine 45 range, 700 mm high with a 90 x 116 mm oval aluminium body finished in polar white RAL 9003. The double-sided design offers two 45 mm front openings for wiring devices and provides a 696 mm2 usable cross-section for cables, entered from the bottom. Powder-coated aluminium construction, IP30, operating from -25 to 60 degrees C, screw-fixed to floor. Typical application is delivering power, data, and AV outlets to open-plan offices, meeting rooms, and retail spaces without perimeter trunking. Country of origin: Denmark.
Technical Specifications
- Manufacturer part number (MPN)
- ISM20203P
- EAN / GTIN
- 3606480682292
- Sales unit
- pcs
- Range of product
- OptiLine 45
- Cabling installation system
- Post
- product type
- Post
- Device presentation
- Empty
- Type of post
- Two-sided
- Pole/post surface finish
- Powder coated
- colour
- Polar white (RAL 9003)
- fixing mode
- Screw-fixed
- Front opening size
- 45 mm
- Material
- Aluminium powder coated
- quantity package 1 / unit
- Set of 1
- Height
- 90 mm
- Width
- 116 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN-AW-6063; NF C 68-102
- operating temperature
- -25…60 °C
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Pillar shape
- Oval
- Model
- Double-sided
- Pre-wired
- No
- Adjustable
- No
- Column height
- 700 mm
- Column depth
- 116 mm
- Column width
- 90 mm
- Number of usable covers
- 2
- Cover width
- 45 mm
- Type of fastening
- Screwing
- Place variable
- No
- Ceiling mounting
- No
- Cable entry
- Bottom
- Through-going profile
- Yes
- Material installation column
- Aluminium
- Material installation column halogen free
- Yes
- Surface protection column
- Coated
- Colour column
- White
- RAL-number column
- 9003
- Material cover
- Aluminium
- Material cover halogen free
- Yes
- Cover surface
- Coated
- Colour top cover
- White
- RAL-number cover
- 9003
- Number of partitions
- 2
- Usable cross section
- 696 mm²
- Suitable for ceiling mounting
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606480682292
- SAP 1200549557
- Code 82901569
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Preventa XPSUAK12AC Safety Relay, 24 V AC/DC, Spring Terminals
Schneider Electric
Schneider Electric wall-mounting encl. ABS/PC monobloc IP66 H310XW215XD160MM transparent door NSYPLM32TG
Schneider Electric
VOLTAGESOUTLET-20 pcs-Linergy-Prisma P
LVS04229
Schneider Electric
Schneider Electric miniature circuit breaker - C60H - 1 pole - 10 A - C curve A9N61508
Schneider Electric

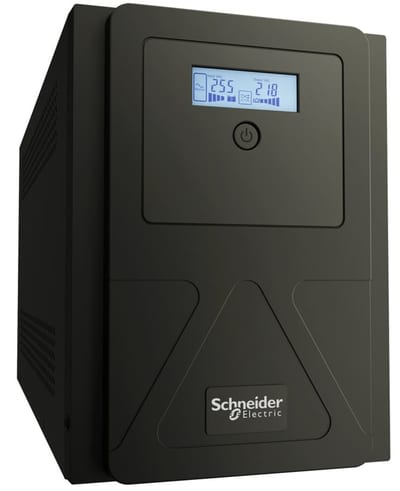

Schneider Electric Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, without Network Card support SMVS750CAI
Schneider Electric
Schneider Electric variable speed drive, Altivar Machine ATV320, 7.5kW, 380 to 500V, 3 phases, compact ATV320U75N4C
Schneider Electric

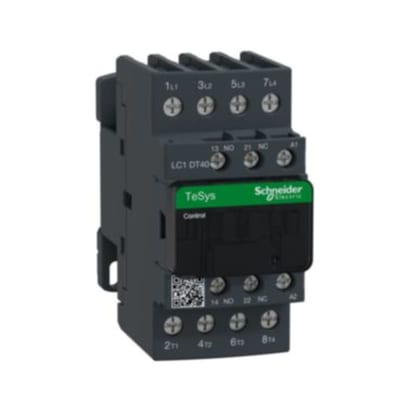

Schneider Electric TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 24 V AC 50/60 Hz coil LC1DT40B7
