CYB-BP Series SET White
Pricing
Request a quote
We reply within 24 hours
Product Description

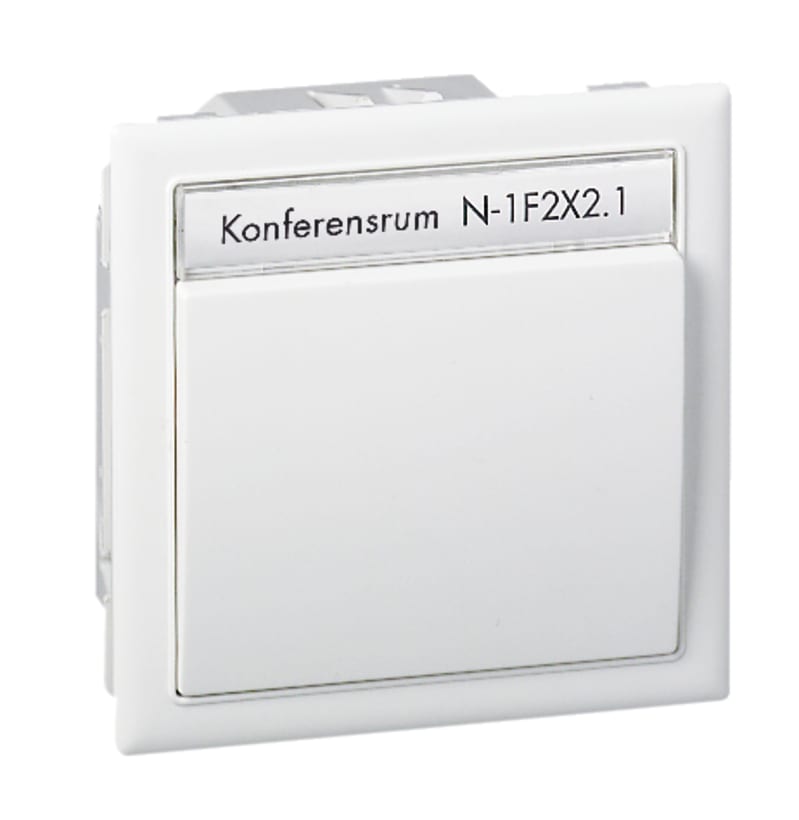

Schneider Electric 5980072 CYB-Bp Two-circuit switch Set Hv.
Technical Specifications
- Manufacturer part number (MPN)
- 5980072
- EAN / GTIN
- 7315880074281
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Wiring system
- Series switch
- Method of operation
- Rocker/button
- Assembly arrangement
- Basic element with complete housing
- Number of modules (module system)
- 2
- Number of rockers
- 2
- Mounting method
- Wall duct
- Type of fastening
- Engage (snap)
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- White
- Label space/information surface
- Yes
- Lighting
- No
- Suitable for degree of protection (IP)
- IP20
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Switching current for fluorescent lamps
- 13 AX
- Connection type
- Push-in clamp
- Device width
- 52 mm
- Device height
- 84 mm
- Device depth
- 52 mm
- Built-in depth
- 52 mm
- Imprint/indication
- None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7315880074281
- SAP 1000063595
- Code 8727063
Product Documentation
