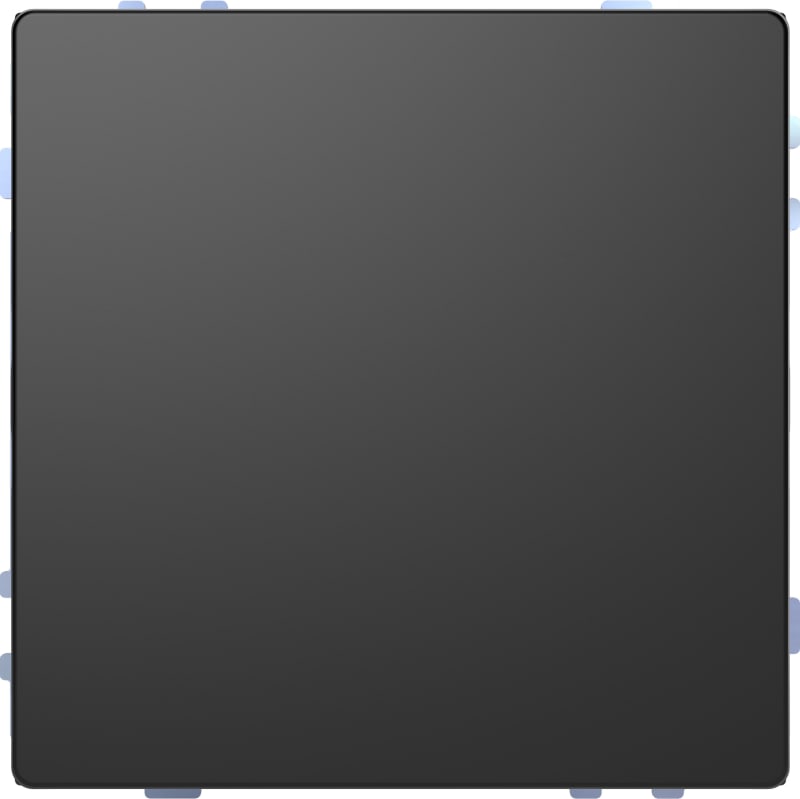

Schneider Electric Push-button Pro T, Merten System Design, temperature sensor, touchless, anthracite, Supply KNX 20 mA MTN6185-6034
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN6185-6034 — Push-button Pro T, Merten System Design, temperature sensor, touchless, anthracite, Supply KNX 20 mA.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6185-6034
- EAN / GTIN
- 3606481047670
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range
- SpaceLogic KNX
- Product or component type
- Push-button
- Bus type
- KNX
- Main colour tint
- Anthracite
- Power supply input current
- 20 mA
- Control type
- Touch type; Touchless
- Sensor type
- Temperature
- Device mounting
- Flush
- Number of FUNCTION keys
- 4
- Function available
- Pulse edges trigger 1-, 2-, 4- or 8-bit telegrams; Express setting: Calls up a pre-set configuration; Push-button with 1 to 4 operating buttons; Night mode: LEDs light up with reduced brightness; Programmable with ETS4 and higher; Pulse edges with 2-byte telegrams; With status displays; Blind (single/dual-surface); Backlit symbols; Disable functions; Scene retrieval; Behaviour and brightness of the status displays; 8-bit linear regulator; Switching, toggling, dimming (single/dual-surface); Dismantling protection with accesories; Advanced setting: Individual configuration; Scene saving; Proximity function
- Local signalling
- 1 LED per channel (white/green)
- Marking
- With symbols
- Material
- Plastic matt
- Colour tint
- Anthracite (RAL 7021)
- surface treatment
- Varnished
- Width
- 71 mm
- Height
- 71 mm
- Technology type
- Electromechanical
- Device presentation
- Mechanism with fixing frame and cover plate
- IP degree of protection
- IP20
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.600 cm
- Package 1 Width
- 7.600 cm
- Package 1 Length
- 7.700 cm
- Package 1 Weight
- 118.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 50
- Package 2 Height
- 19.800 cm
- Package 2 Width
- 30.400 cm
- Package 2 Length
- 40.400 cm
- Package 2 Weight
- 6.240 kg
- Warranty (in months)
- 18
- Other bus systems
- None
- Number of actuation points
- 4
- Number of buttons
- 1
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Anthracite
- RAL-number (similar)
- 7021
- Degree of protection (IP)
- IP20
- Min. depth of built-in installation box
- 40 mm
- Mounting method
- Flush-mounted
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606481047670
- SAP 1200535181
- Code 82822618
