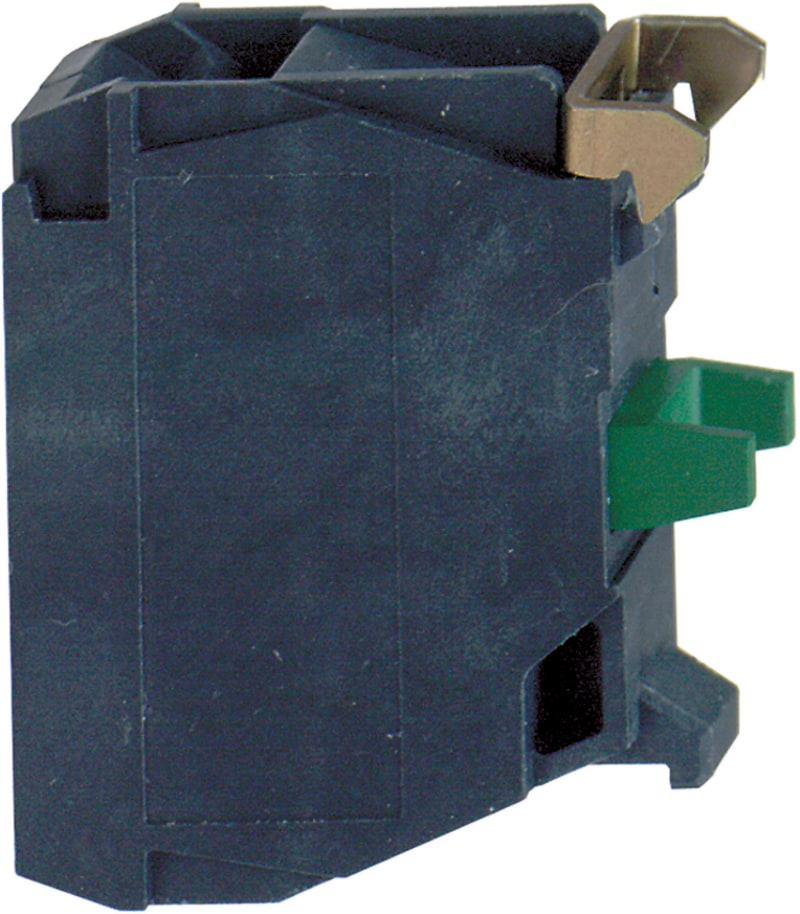

Schneider Electric ZBE1016P single contact block for head Ø22 1NO gold flashed screw clamp terminal

Schneider Electric ZBE1016P single contact block for head Ø22 1NO gold flashed screw clamp terminal is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Range of product: Harmony XB4; Harmony XB5; Product or component type: Contact block; Device short name: ZBE; Sale per indivisible quantity: 5.

Manufacturer part number (MPN)

ZBE1016P

EAN / GTIN

3389110862836

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4; Harmony XB5

Product or component type

Contact block

Device short name

ZBE

Sale per indivisible quantity

5

IP degree of protection

IP5X

Contact operation

Slow-break

Contact block type

Single

Contacts usage

Low power switching contacts

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Product weight

0.012 kg

Contacts type and composition

1 NO

Positive opening

Without

Operating travel

2.6 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

2.3 N NO changing electrical state

Mechanical durability

10000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Gold flashed (Ag/Ni/Au) contacts

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Mounting of block

Front mounting

Electrical composition code

C9 (quantity <= 3); M5 (quantity <= 2); M9 (quantity <= 2)

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Standards

CSA C22.2 No 14; UL 508; IEC 60947-5-1; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-1; JIS C8201-1

Product certifications

CSA; BV; GOST; LROS (Lloyds register of shipping); DNV; UL; CCC

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6 cm

Package 1 Width

4.4 cm

Package 1 Length

5.4 cm

Package 1 Weight

10 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

6 cm

Package 2 Width

4.4 cm

Package 2 Length

5.4 cm

Package 2 Weight

57 g

Unit Type of Package 3

S02

Number of Units in Package 3

400

Package 3 Height

15 cm

Package 3 Width

30 cm

Package 3 Length

40 cm

Package 3 Weight

4.85 kg

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
