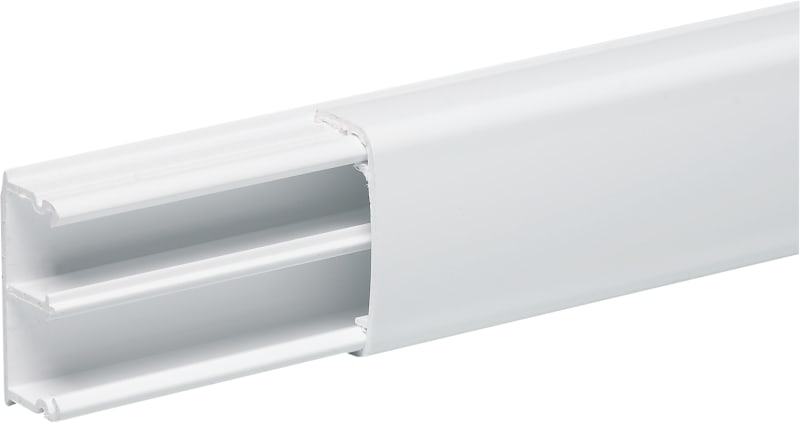

Schneider Electric ISM14400 OptiLine - minitrunking - 18 x 35 mm - PVC - white
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric ISM14400 OptiLine - minitrunking - 18 x 35 mm - PVC - white is listed under Control & Automation / Conduit & Trunking. Sales unit: pcs; Range of product: Optiline; Cabling installation system: Trunking; product type: Mini trunking; trunking type: Mini trunking; Trunking material: Plastic.
Technical Specifications
- Manufacturer part number (MPN)
- ISM14400
- EAN / GTIN
- 3606480311161
- Sales unit
- pcs
- Range of product
- Optiline
- Cabling installation system
- Trunking
- product type
- Mini trunking
- trunking type
- Mini trunking
- Trunking material
- Plastic
- Compartment partitioning
- 2 compartments
- colour
- White (RAL 9010)
- trunking dimension
- 18 x 35 mm
- Fixing mode
- Pre-punched fixing hole 100 mm; Power cable: screw-fixed
- Material
- PVC (polyvinyl chloride)
- quantity per package
- 42 m
- operating temperature
- -25…60 °C
- Length
- 2100 mm
- Height
- 35 mm
- Width
- 18 mm
- Standards
- 73/23/EEC; EN 50085-1:2005; EN 50085-2-1:2006
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.5 cm
- Package 1 Width
- 1.8 cm
- Package 1 Length
- 210 cm
- Package 1 Weight
- 139 g
- Warranty (in months)
- 18
- Halogen free
- No
- RAL-number
- 9010
- Surface protection
- Untreated
- Pre-stamping
- No
- Material quality
- Polyvinyl chloride (PVC)
- Type of fastening
- Bottom perforation
- Impact strength
- IK07
- Number of permanent partitions
- 1
- With cable fixing clip
- No
- With duct connector
- No
- Usable cross section
- 402 mm²
- With protective foil
- No
- Degree of protection (IP)
- IP40
- Delivery on roll
- No
- Transparent
- No
- Suitable for circuit integrity
- No
- Cover model
- Loose
- Anti-bacterial treatment
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480311161
- SAP 1000096504
- Code 8589998
