Schneider Electric NSYS3D6420P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600X400X200MM, IP66, IK10
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYS3D6420P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600X400X200MM, IP66, IK10 is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Range: PanelSeT; Product name: PanelSeT S3D; Application: Multi-purpose; Enclosure nominal height: 600 mm; Enclosure nominal width: 400 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D6420P
- EAN / GTIN
- 3606480159329
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 600 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 200 mm
- Door type
- Plain
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 mounting plate; 1 door with lock; 1 cable gland plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- GL; UL; cUL; DNV; BV
- Product weight
- 13 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24.500 cm
- Package 1 Width
- 42.000 cm
- Package 1 Length
- 61.500 cm
- Package 1 Weight
- 13.306 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 14
- Package 2 Height
- 137.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 200.200 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 400 mm
- Height
- 600 mm
- Depth
- 200 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159329
- SAP 1000089615
- Code 8914870
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV3, 3P, 30-40 A, thermal magnetic, EverLink terminals GV3P40
Schneider Electric

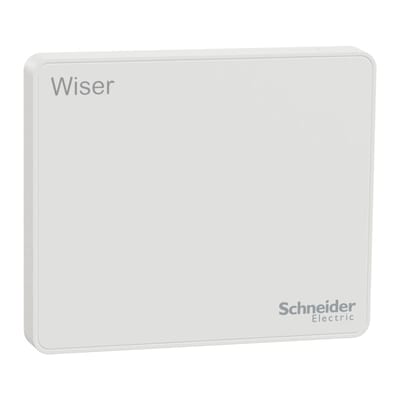

Wiser Hub 2ND Generation
CCT501801
Schneider Electric
Schneider Electric Regulated Power Supply, 100-240V AC, 12V 1 A, single phase, Modular ABLM1A12010
Schneider Electric

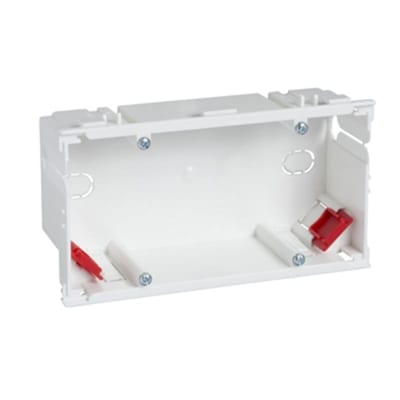

Double Device BOX MIB-A2
5586155
Schneider Electric
Schneider Electric XB4BD53 Selector switch, metal, black, Ø22, 3 positions, spring spring return, 2 NO
Schneider Electric
Schneider Electric switch disconnector iSW - 2P - 63 A - 415 V A9S65263
Schneider Electric

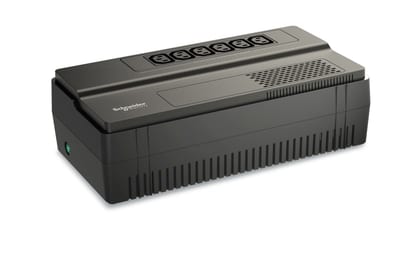

Schneider Electric BVS800I Schneider Electric EASY UPS BVS 800VA, IEC Outlet
Schneider Electric

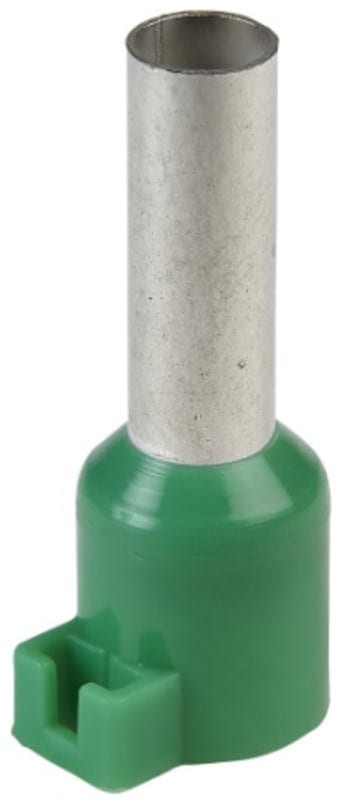

End Ferrule 6mm², short, with collar
DZ5CA062
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYS3D6420P?
- NSYS3D6420P can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYS3D6420P.
- What is the HS code for NSYS3D6420P?
- The customs tariff (HS) code for NSYS3D6420P is 9403.20.
- Who manufactures NSYS3D6420P?
- NSYS3D6420P is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYS3D6420P?
- Yes — the NSYS3D6420P datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYS3D6420P?
- The minimum order quantity is 1.
- Is NSYS3D6420P available?
- Yes — NSYS3D6420P is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
